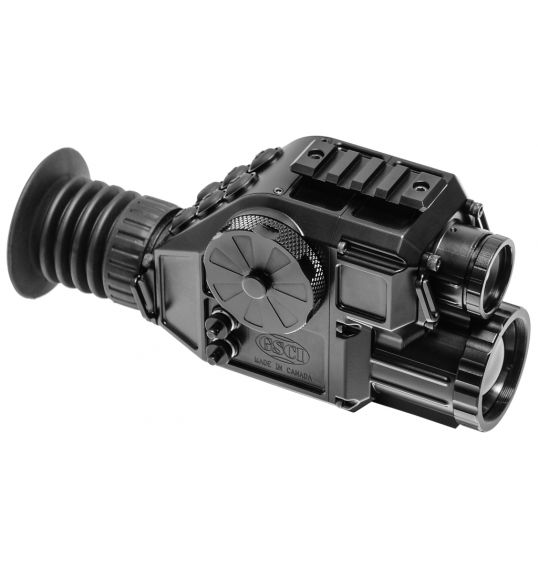

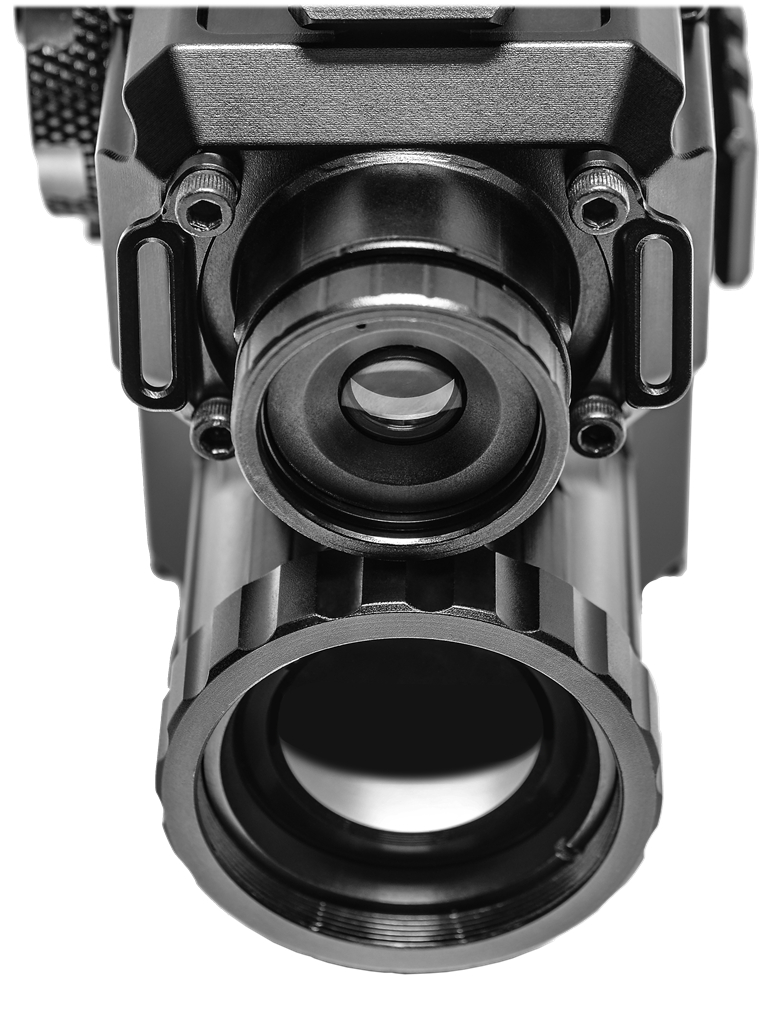

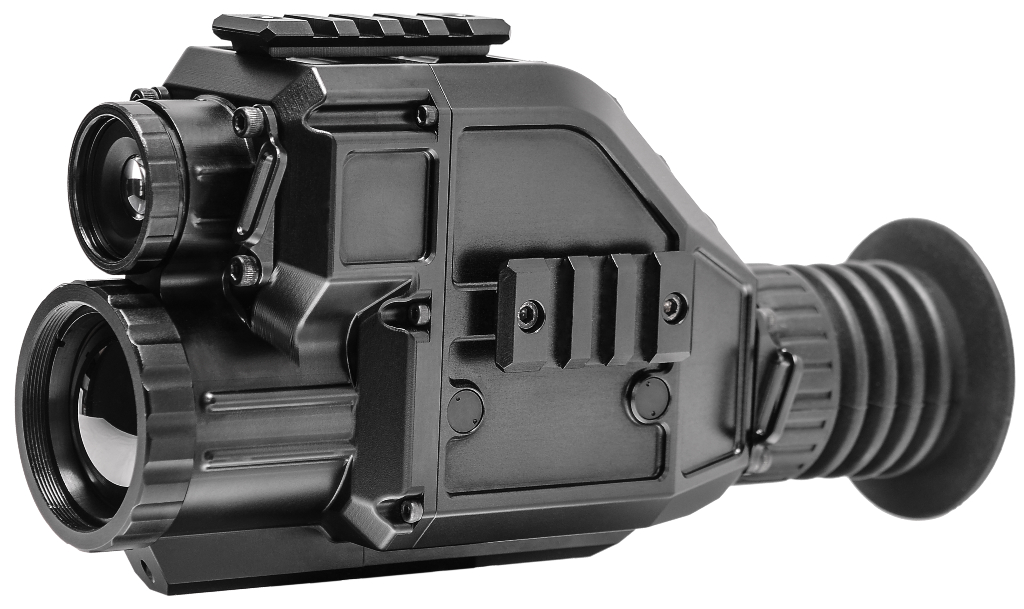

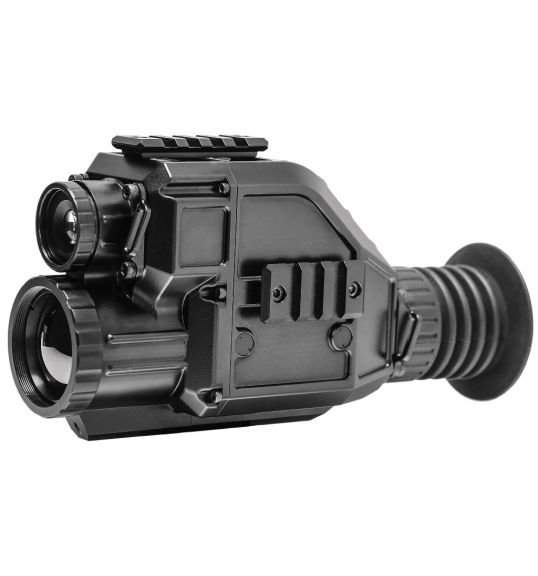

Multi-Channel Fusion System QUADRO-S



The QUADRO-S is the augmented vision multi-purpose system for tactical surveillance, observation, as well as aiming and engagement at short- and medium-range distances. Along with selecting between visible/near-infrared and far-infrared (thermal) channels individually, GSCI’s Unique Patented technology allows to produce and display real-time, delay-free fusion image that superimposes all ranges of the spectrum from its sensors to successfully detect any target and defy poor lighting or weather conditions. Wide field of view allows for better situation awareness. The unit is small and lightweight, and yet made of a hard-anodized aluminum for added strength and shock resistance.



























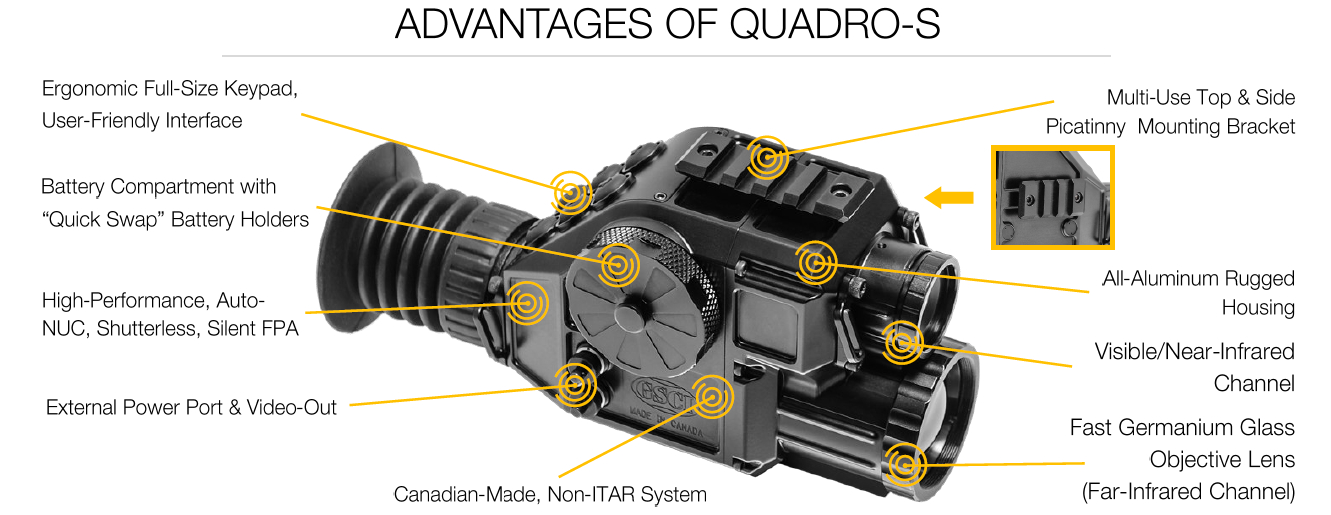

KEY FEATURES



¨ 100% Target Detection Capability

¨ Compact and Versatile

¨ Multi-Mode 24/7 Operation

¨ High Situational Awareness

¨ Auto-NUC: No Calibration Needed

¨ Universal Power Solution



MAIN APPLICATIONS



¨ Defence

¨ Security

¨ Border Patrol

¨ Special Forces

¨ Surveillance

¨ Reconnaissance





Face Recognition Technology Ready.



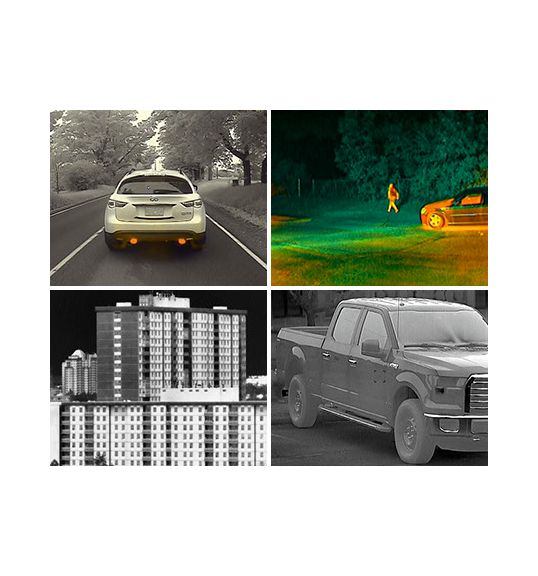

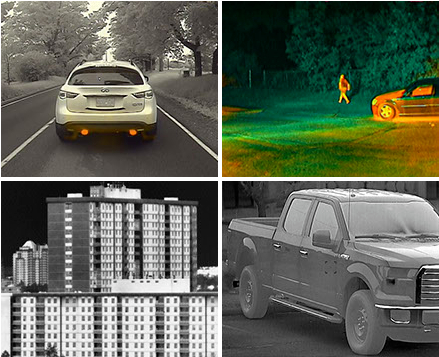

 The QUADRO lineup is designed utilizing GSCI’s patented technology that produces and displays real-time, delay free fusion image that superimposes both spectral ranges covered by its sensors. Besides a number of unique features, this device combines consequential technologies to produce an image allowing for facial recognition in low light or night conditions. The data recorded can be used for enhanced real-time biometrics and post mission forensic analysis for covert nighttime operations. Using this type of technology for recognition at nighttime has revolutionized warfare as it has proven extremely beneficial for informing a soldier that the individual is someone of interest and reducing risk of misidentification.



Fused images can be used in combination with biometric face databases/watch lists that only contain visible face imagery. The fusion technology allows taking advantage of both technologies and combining thermal and visible imagery to jointly preserve the shape of the entire face and appearance of the local identifying details.

Detecting objects that were difficult, or impossible, to see using current state-of-the-art thermal cameras was the main objective behind the design of the QUADRO systems, and all the functions can be done with a simple press of a button.



Additional Features such as Digital Edge Detection and Digital Detail Enhancement make Face Recognition even more effective





OPTICAL PARAMETERS Optical Magnification 1.4X

  Field of View 17.7°x13.3°

  Focusing Range 0.5m .. Infinity

  Eyepiece Single

  Diopter Adjustment Range -6 .. +4

  Eyerelief Min. 50mm



SYSTEM PARAMETERS: CAPABILITIES AND SPECIAL FEATURES Shot-Initiated FOV Feature (SIF) Optional: Built-In Adjustable Shock Sensor

  Digital Passive Stadiametric Rangefinder (SRF) Yes

  Digital Detail Enhancement Feature (DDE) Yes

  Digital Edge Detection Feature (DED) Yes

  Wide Dynamic Range Feature (WDR) Yes

  Stow Safety Feature (SSF) Yes

  Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display)  Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope

  Integrated Compass Optional

  Pitch / Roll / Azimuth Indications Optional

  Power Saving Mode Yes

  Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats

  Digital Video Recorder with Real-Time Stamp Optional: Comes with Removable 32GB microSD Card

  Electronic Reticles Optional: 8+8 Patterns, Easy Zeroing / Calibration

  Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m) 1660m / 2250m

  Hand-Held Configuration Yes

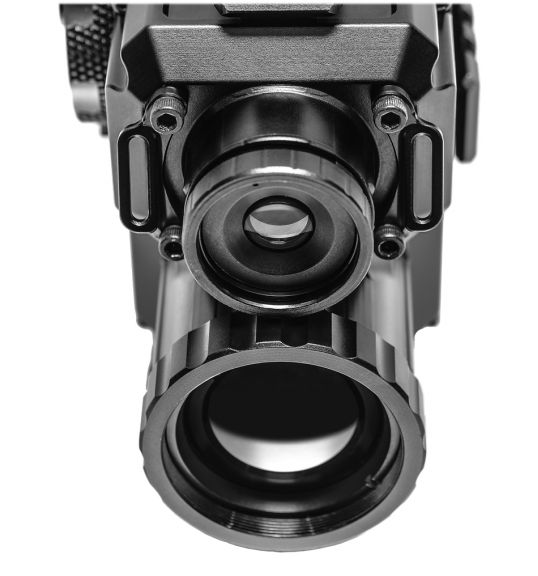

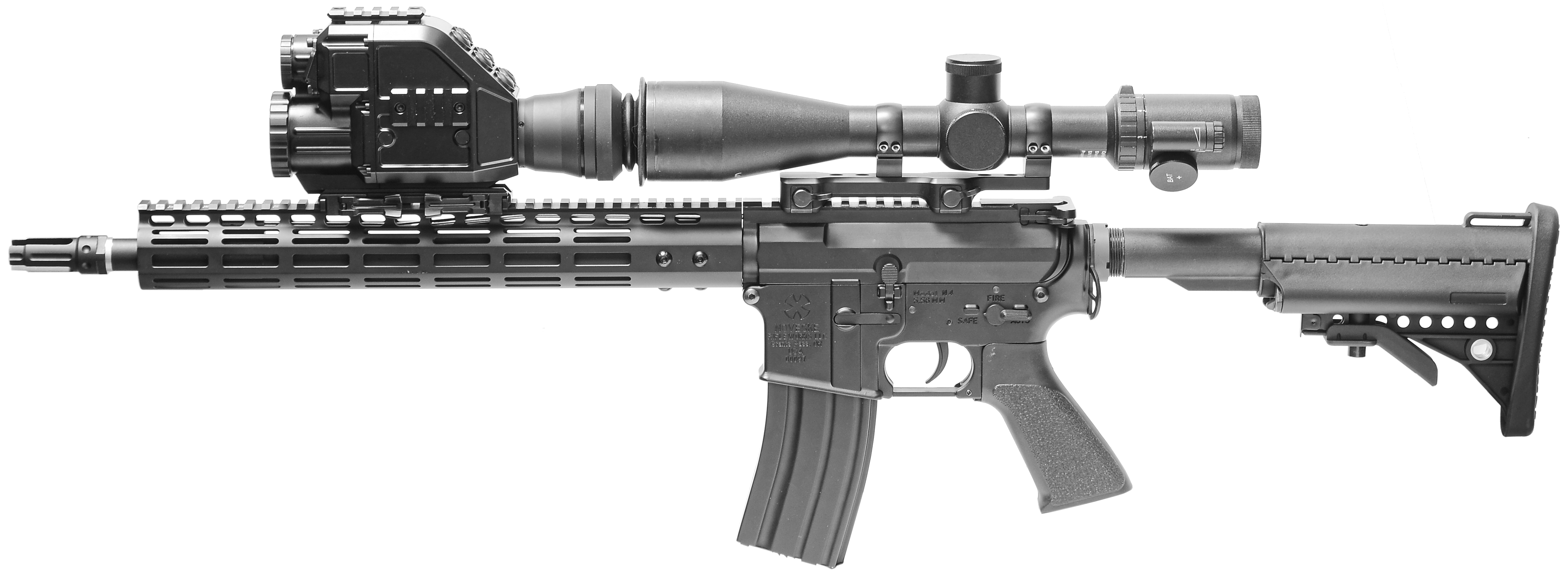

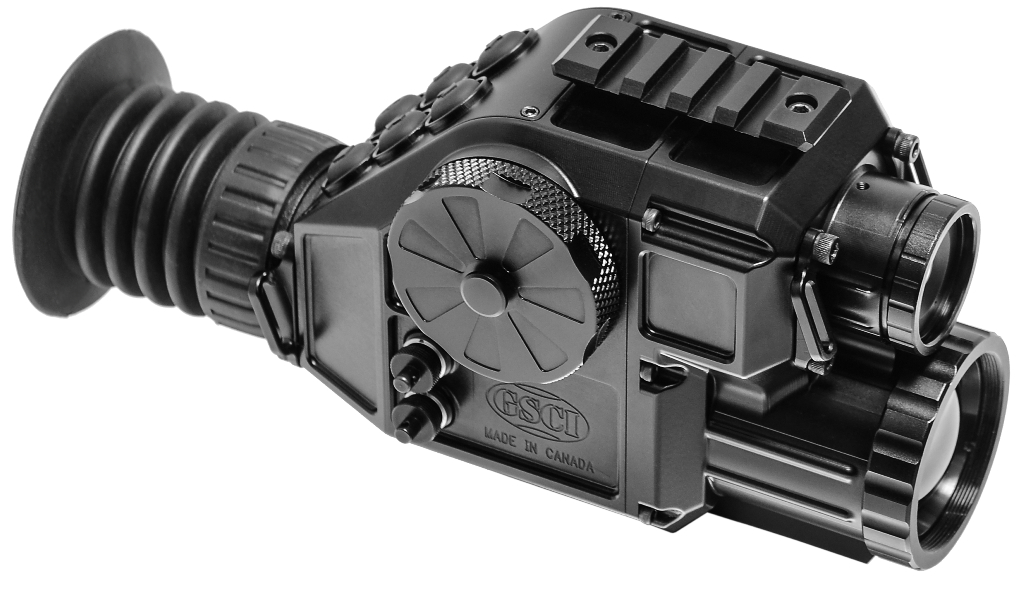

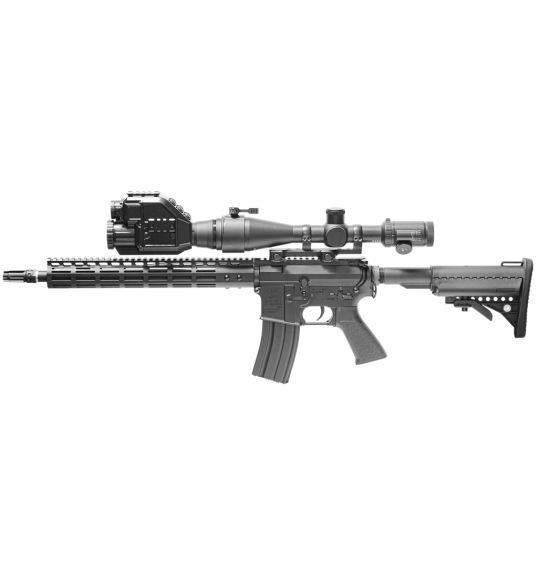

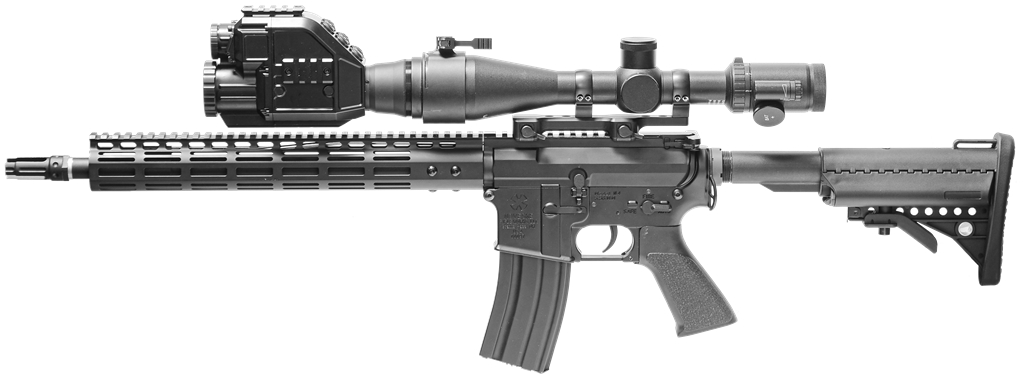

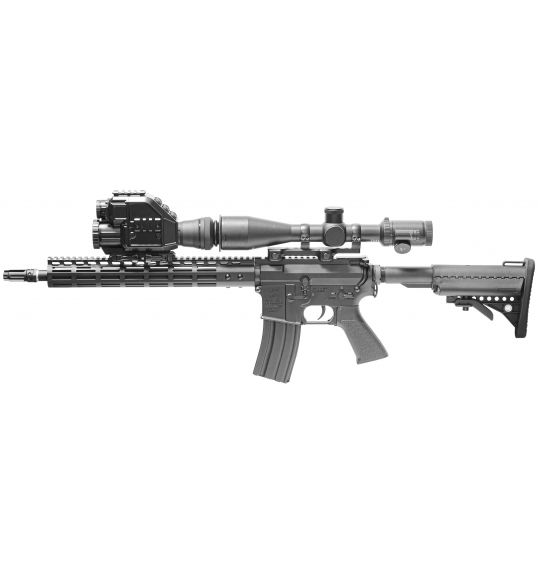

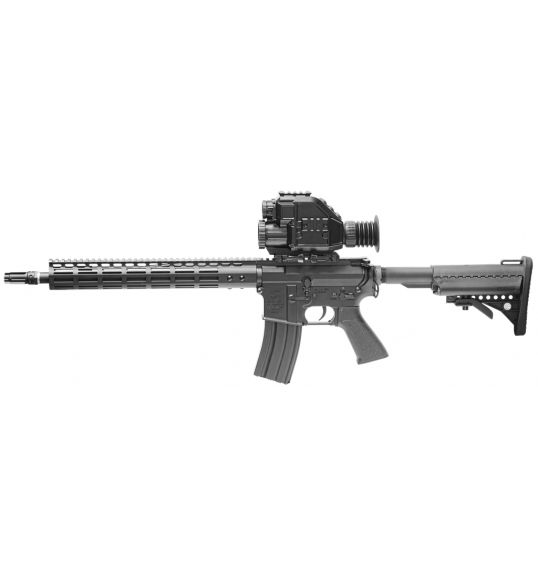

  Conversion to Clip-On (In-Line) Sight Yes

  Conversion to Standalone (Direct-View) Sight Yes

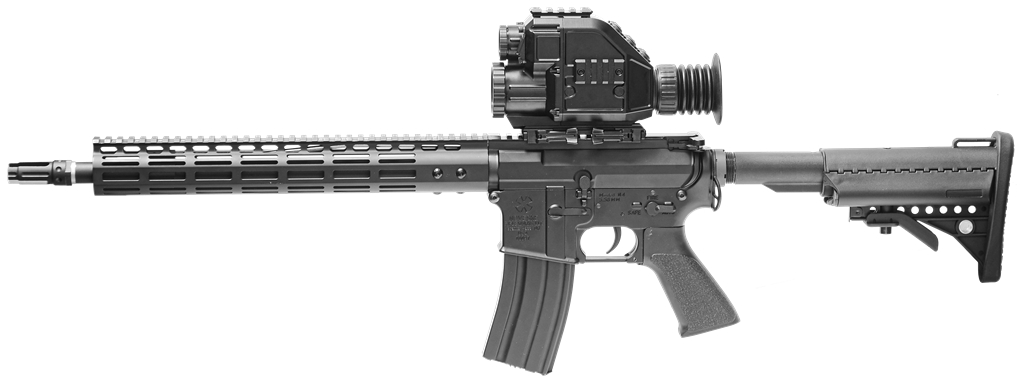

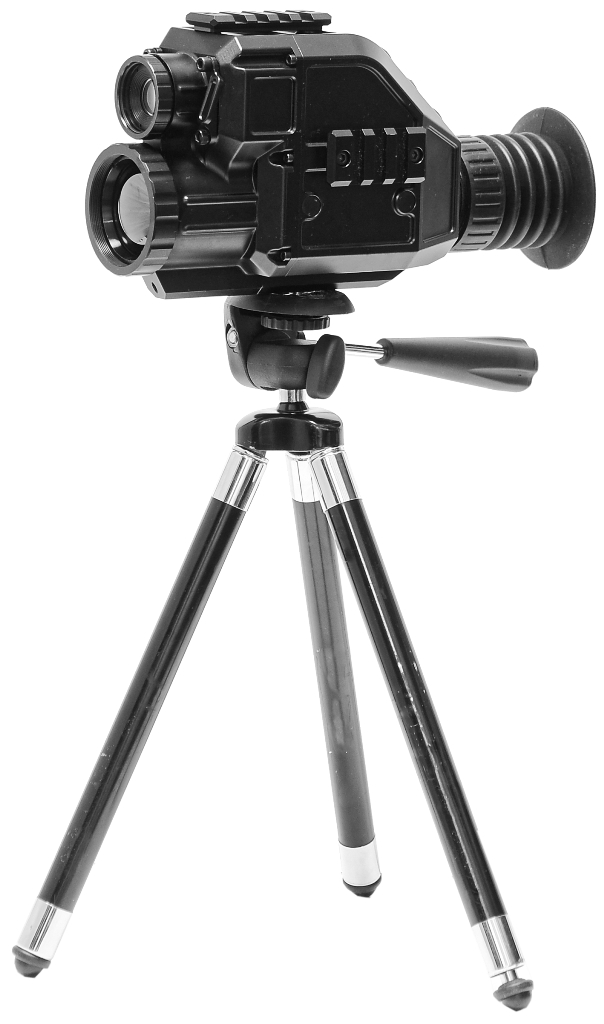

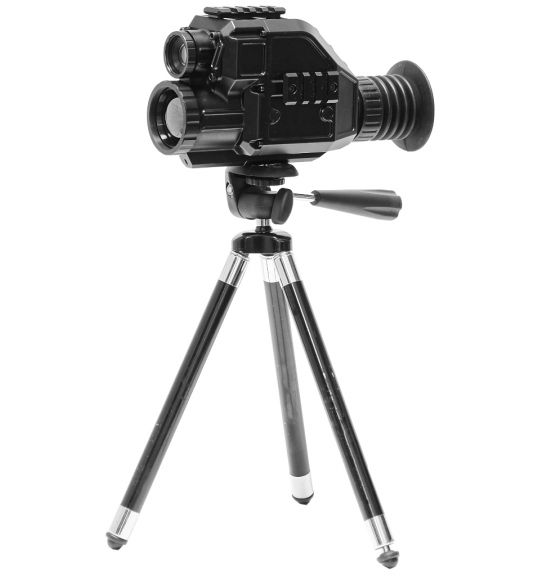

  Tripod-Mountable Yes

  User Profiles (Configurable) Yes: 8

  Automatic/Manual Pixel Masking Yes

  Reset to Factory Defaults Yes

  External Video Feed Protection Yes

  Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity



THERMAL (LWIR)CHANNEL  FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)

  FPA Resolution and Pitch 640x480, 17μm

  FPA Sensitivity (NETD) <50mK

  FPA Refresh Rate 50Hz

  Digital Zoom 1X, 2X, 4X

  Imaging Modes Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes



DAY/NIGHT (VNIR) CHANNEL  Sensor Type  High-Performance CCD

  Sensor Size 1/3”

  Resolution 800x600

  Sensitivity Up to 0.1Lux

  Night Boost Mode Yes

  VNIR Modes Day/Night





DISPLAY Internal Display Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600

  Internal Display Contrast >10000:1

IMAGE FUSION Type Real-time, Electronic

  Fused Channels LWIR + VNIR

  Parallax Compensation Electronic, Adjustable

  Heat Signature Opacity Range User Adjustable: 0% .. 100%

ELECTRONICS, MECHANICAL, ENVIRONMENTAL FEATURES Accepted Batteries 4 (Four) AA: Lithium Recommended

  Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)

  Video Output Signal CVBS 1Vpp @ 75 Ohm

  Battery Life on 4x AA Up to 7 Hours

  Environmental Protection Min. IP67, Nitrogen-Purged Housing

  Dimensions 170x91x70mm

  Weight 750 grams

  Operating Temperature -40°C .. +50°C

  Storage Temperature -55°C .. +65°C

  Body Material Hard-Anodized Aluminum

  Warranty 7 Years, Limited





STANDARD EQUIPMENT: WHAT’S IN THE BOX

1 Fusion Unit

2 Rubber Eyecup (Attached) + Spare

3 Front Lenses Protective Cover (Attached)

4 Hand Strap (for hand-held application)

5 Neck Cord

6 Quick Swap Battery Containers

7 USB Power Cable

8 Video-Out Cable

9 Soft Carrying Pouch

10 User Manual

11 7-Year Warranty with Activation Form

12 Waterproof Hard Carrying Case

13 Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)

* Batteries not included





OPTIONAL EQUIPMENT

A Universal Remote Control Unit TRC-120 (Comes with connection cable)

B Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable)

C Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter)

D External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card)

E Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable)

F Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading

G Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments)

H Heavy-Duty Quick Release Rifle Mount MAK-QR-BLASER (Blaser, Adapter included)

I Heavy-Duty Quick Release Rifle Mount MAK-QR-PICATINNY (PICATINNY, Adapter included)

J Heavy-Duty Rifle Mount MAK-PICATINNY (PICATINNY, Adapter included, Allen Key Included)

K Adapter for MAK Mount: Regular Length (ADAPTER-REG) or Extended Length (ADAPTER-EXT)

L Clip-On Adapter COA with Rubber Shroud

M Day Scope Adapter Clamp for COA for direct mounting onto daytime optics, CO-DSA (various sizes available)

N Long Eyerelief Rubber Eyecup GSCI-EYECUP-LR

O Tactical Infrared Illuminator IR-250S. Kit Includes IR-250S Unit (850nm), Remote Control, Picatinny Mount
