GSCI. Θερμικά Κυάλια UNITEC-B50-38 Long-Range Tactical Thermal Binoculars

Προηγούμενο  /  Επόμενο
[Επικοινωνήστε για Τιμή]

50mm Objective Lens

384x288 FPA

GSCI
19055
Προσθήκη στη Λίστα Αγαπημένων
Χρόνος παράδοσης 1 έως 4 μέρες.
Σε περίπτωση μη διαθεσιμότητας θα επικοινωνήσουμε άμεσα μαζί σας.
  • Share on Facebook
  • Tweet
  • Share on Google+
  • Pin it

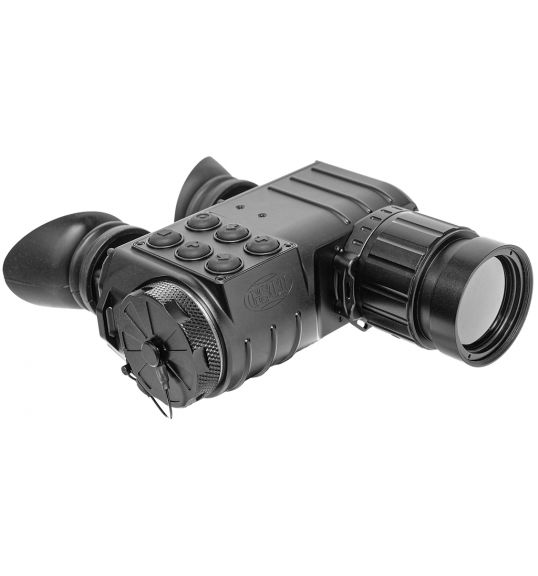

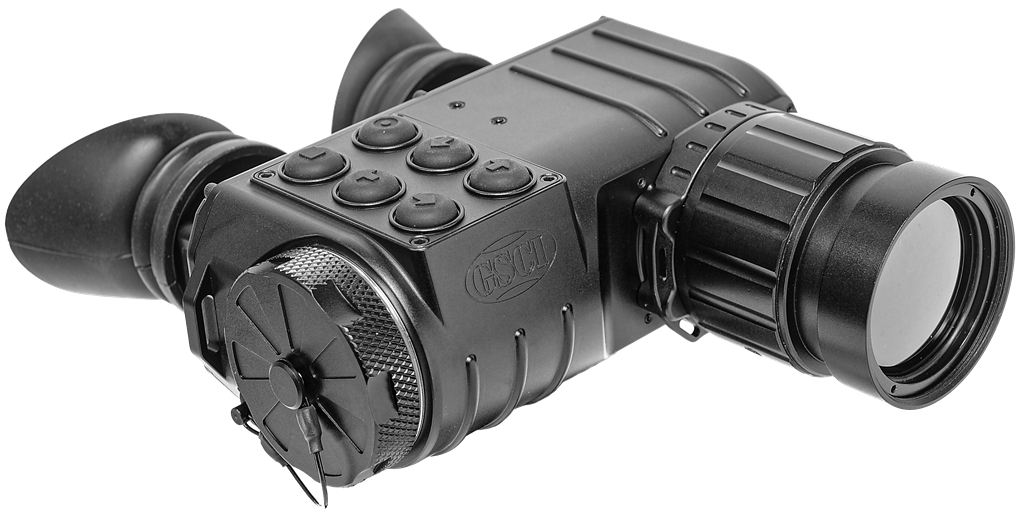

Long-Range Tactical Thermal Binoculars UNITEC-B50-38

The UNITEC-B50-38 is a thermal binocular system designed for multiple applications that involve reconnaissance and tactical surveillance at medium- and long-range distances.
The latest generation silent and Auto-NUC sensor is at the base of the UNITEC-B50-38. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.
The UNITEC-B50-38 has dual-AMOLED display system that designates one hi-res AMOLED display for each individual eyepiece and has no moving parts inside. UNITEC-B50-38 can be comfortably operated for prolonged viewing periods without eye strain.
With full-aluminum enclosure, the UNITEC-B50-38 is all-around professional thermal imaging solution for day- and night-time operations that demand long-range observation capabilities.

KEY FEATURES

¨ Fast 50mm Objective Lens
¨ Auto-NUC FPA: 384x288
¨ Optional Built-In Video Recorder
¨ Up to 8 Hours Battery Life
¨ ITAR-Free System: Available for Export

MAIN APPLICATIONS

¨ Perimeter Security
¨ Law Enforcement
¨ Wildlife Observation
¨ Border Patrol
¨ Tactical Surveillance

DISTINCTIVE FEATURES
· High-Resolution Uncooled FPA with Auto-NUC: 384x288
· Fast Refresh Rate: 50Hz
· Quality and “Fast” Low-F-Number Germanium Lens
· Ultra-Low Power Consumption
· Optional Built-In Video Recorder
· WDR and DDE Features for Image Enhancement
· Stadiametric Rangefinder (SRF)
· Stow Safety Feature (SSF)
· Completely Silent System Operation
· Interchangeable Optics
· Precision-Machined Rugged Aluminum Body
· Video-out for External Display and Recording
· High-Resolution Colour AMOLED Displays 800x600
· 24-hour Operation
· Manual and Automatic FPA Sensitivity Adjustment
· Manual Display Brightness Adjustment
· Black Hot / White Hot Polarity Control
· Universal Power Solution: AA, USB-powered, etc.
· Complete Dust– and Waterproof Protection
· Made in Canada. Available for Worldwide Export
· 7-Year Manufacturer’s Warranty


Optical Magnification 3X
Objective Lens System 50mm
Field of View 7.5°x5.6°
Focusing Range 1m .. Infinity
Eyerelief Min. 20mm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch 384x288, 17μm
FPA Sensitivity (NETD) <50mK
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X
Internal Display Full Size: 0.5-Inch Diagonal, Dual-AMOLED, Colour, 800x600
Imaging Modes Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes
Digital Passive Stadiametric Rangefinder (SRF) Yes
Digital Detail Enhancement Feature (DDE) Yes
Wide Dynamic Range Feature (WDR) Yes
Stow Safety Feature (SSF) Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope
Integrated Compass Optional
Pitch / Roll / Azimuth Indications Optional
Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp Optional: Comes with removable 32GB microSD card
Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m) 1160m / 2250m
Hand-Held Capability Yes

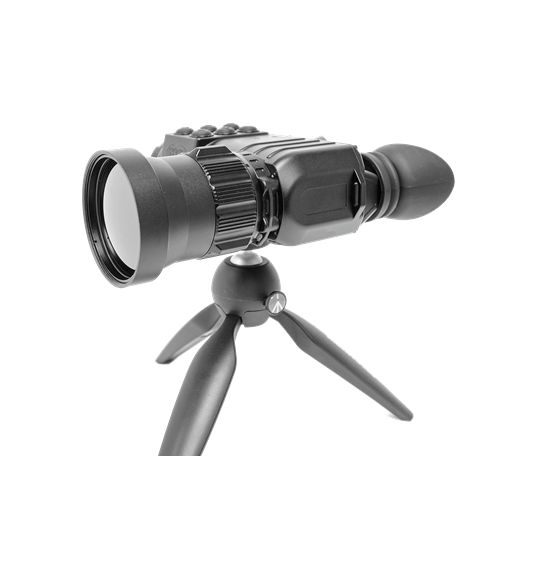

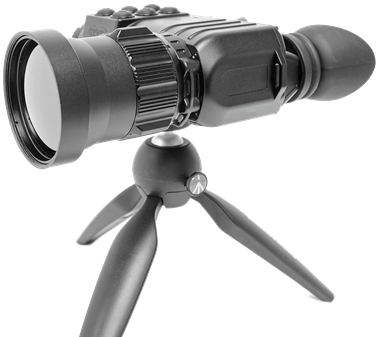

Tripod-Mountable Yes
Automatic/Manual Pixel Masking Yes
Reset to Factory Defaults Yes
External Video Feed Protection Yes
Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity
Accepted Batteries 4 (four) AA of Any Type: Lithium / Rechargeable
Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Battery Life on 4x AA Up to 8 Hours
Environmental Protection Min. IP67, Nitrogen-Purged Housing
Dimensions 161x142x71mm
Weight 825 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Made In Canada ITAR-Free
Batteries not included


STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 Thermal Binoculars
2 Rubber Eyecups (Installed on the device) + Spares
3 Protective Lens Cover (Installed on the device)
4 USB Power Cable (5-pin to USB)
5 Video-Out Cable (5-pin to RCA)
6 Quick Swap Battery Containers (AA)
7 Neck Cord
8 Soft Carrying Pouch
9 User Manual
10 7-Year Warranty with Activation Form
11 Waterproof Hard Carrying Case
12 Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)


OPTIONAL EQUIPMENT
A Universal Remote Control Unit TRC-120 (Comes with connection cable)
B Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable)
C Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter)
D External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card)
E Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable)
F Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading
