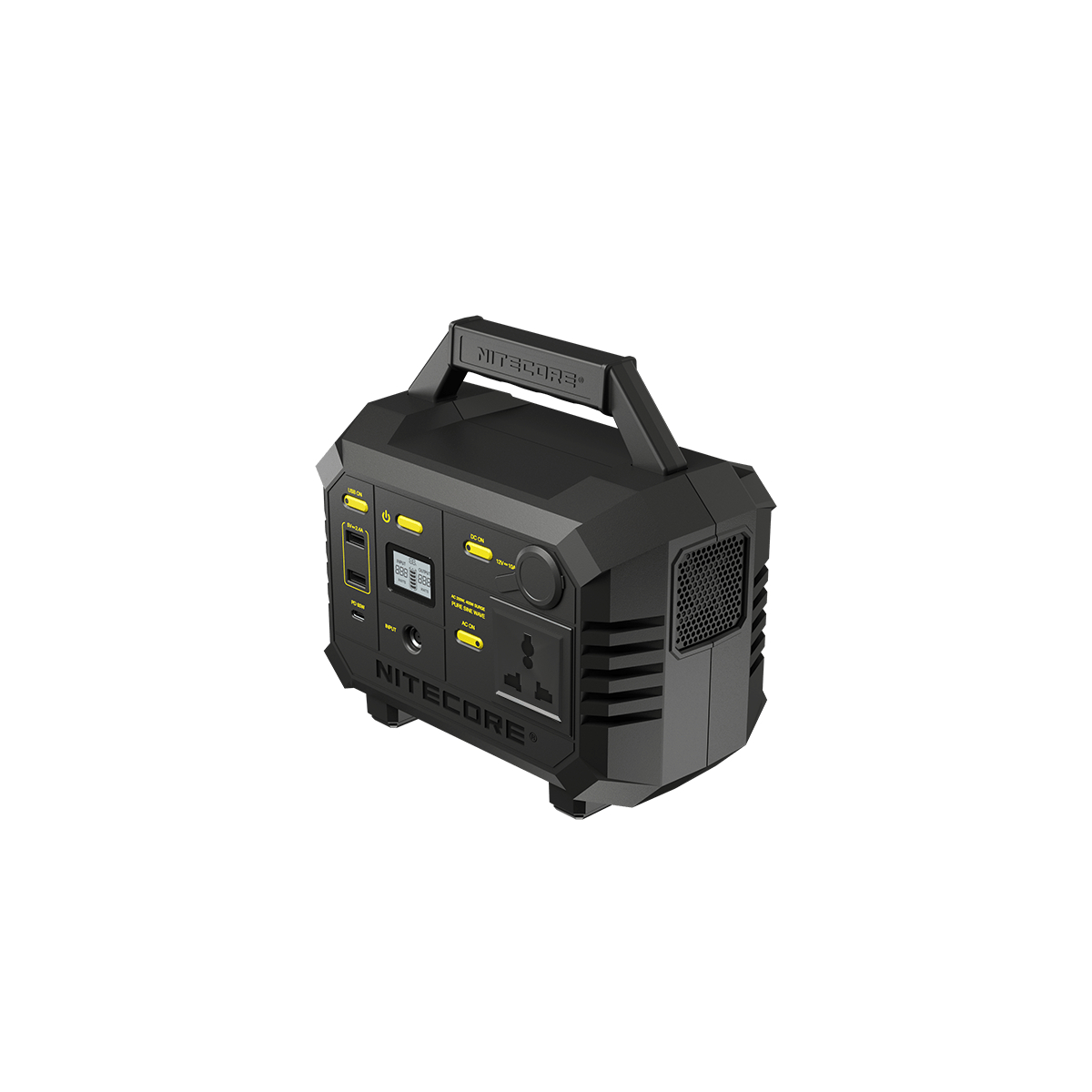

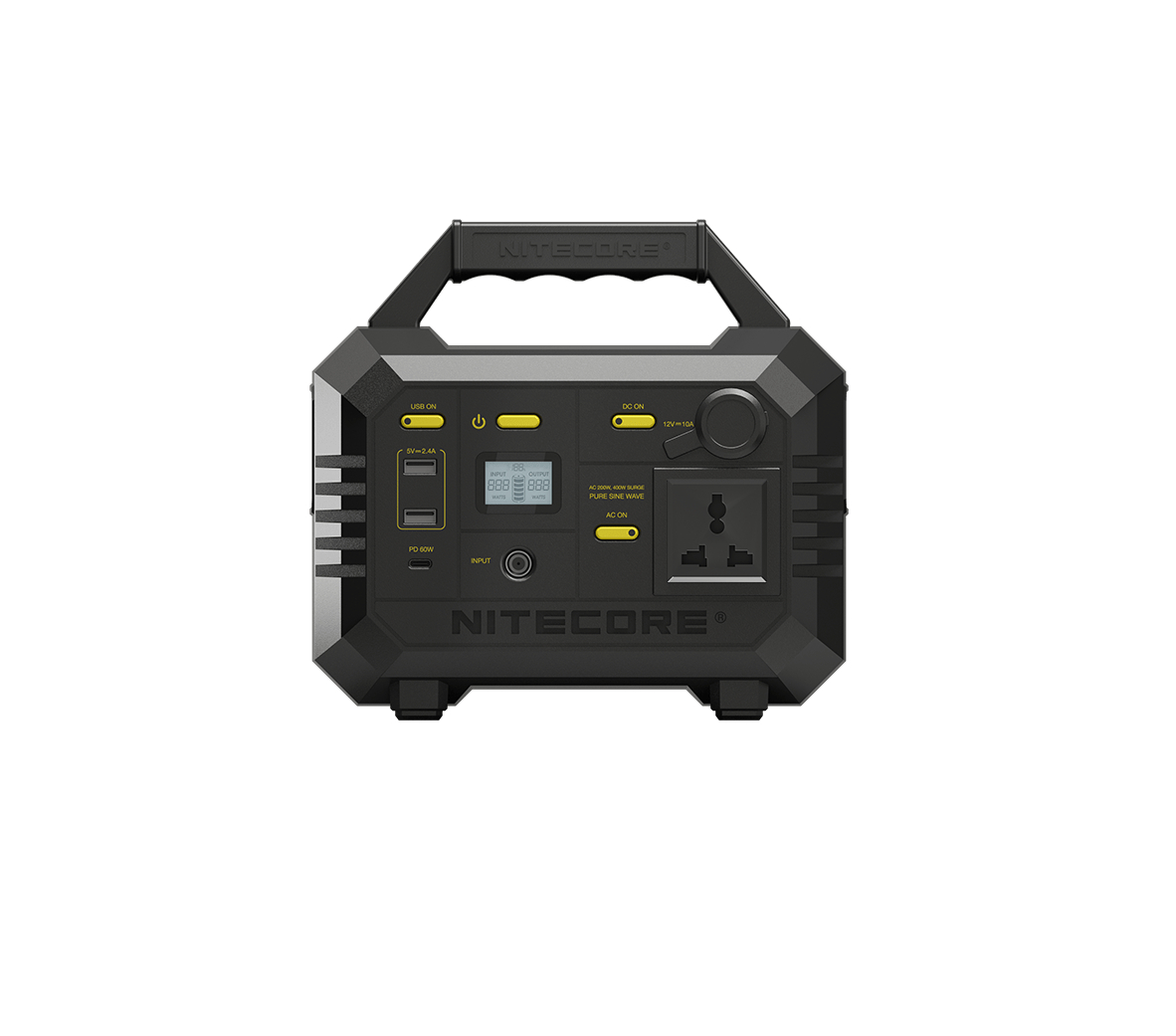

NITECORE POWER STATION NES300, 86400mAh

POWER STATION NITECORE NES300, 86400mAh

01. Smart power solution while on the move
NITECORE NES300 Portable Power Station with 311Wh capacity, 200W AC output power, Multiple output ports.

02. The NITECORE brand has won a number of accolades / awards of international value.
NITECORE's Outdoor Power Solutions Division aims to create an eco-friendly power system
for outdoor enthusiasts whose lifestyles go hand in hand with ecology and sustainability. We strive to deliver the most
technologically advanced experience with professional, reliable and efficient power delivery systems designed to innovate the way we access
off-grid energy and enable an endless supply of energy on the road.

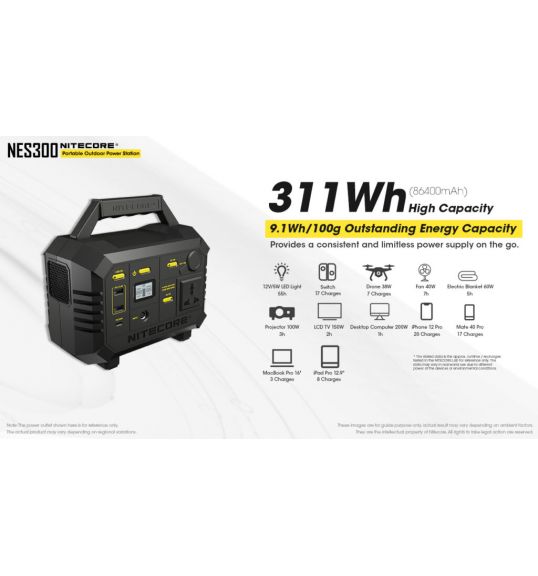

03. Large capacity 86400mAh or 311Wh (Hours of Operation). Proportion 9.1Wh (Hours of Operation) per 100g
Provides constant and inexhaustible energy during movements.
Indicative consumption:
– LED lamp 12V/5W duration 55 hours
– Nitendo Switch 17 charges
– Drone 38W charges 7 times
– Fan 40W operation for 7 hours
– Electric blanket 60W operation for 5 hours
– Projector 100W operation for 3 hours
– LCD TV 150W operation 2 hours
– PC 2000W operation for 1 hour
– Smartphone iPhone12, 20 charges.
– Mate 40 Pro, 17 charges
– MacBook Pro 16″, 3 charges
– iPad Pro 12.9″, 8 charges

The above mentioned measurement data are approximate operating hours or loads measured in NITECORE laboratories
and are for reference only. Data may differ in real-world usage due to different power consumption of
devices or different environmental conditions.

04. 200W effective output power that withstands 400W mega wave
Power the moments of enjoyment of your family or friendly gatherings.

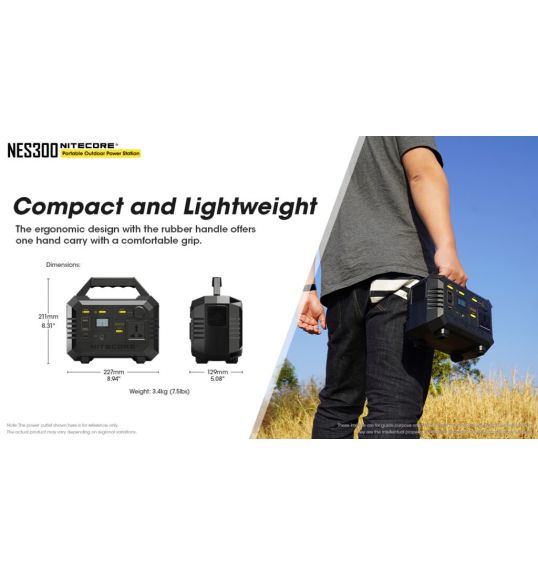

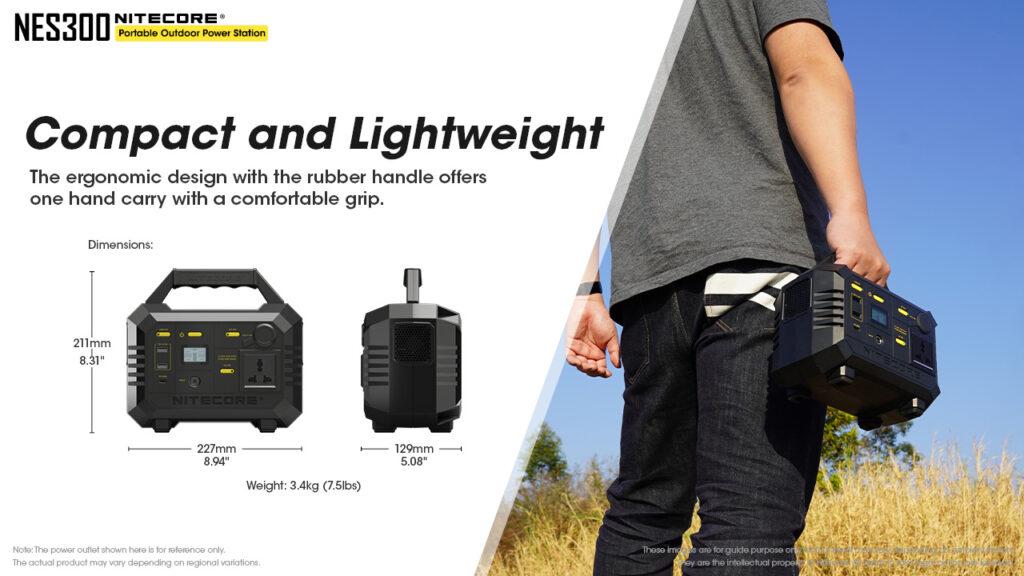

05. Small size and Light weight.

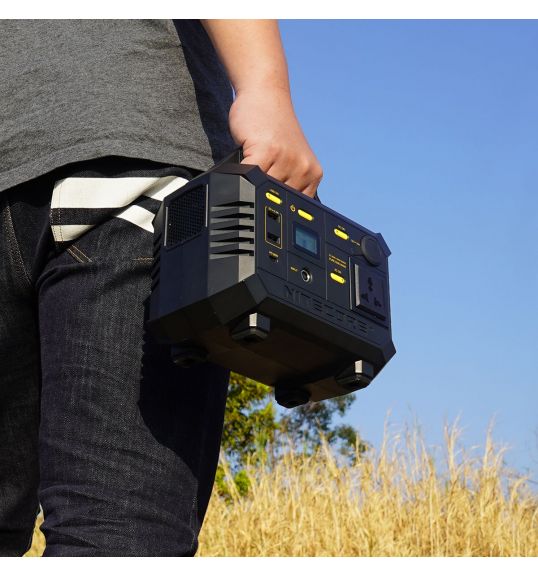

Ergonomic design with rubber grip provides comfortable one-handed grip
Dimensions: 211mm x 227mm x 129mm
Weight: 3.4kg

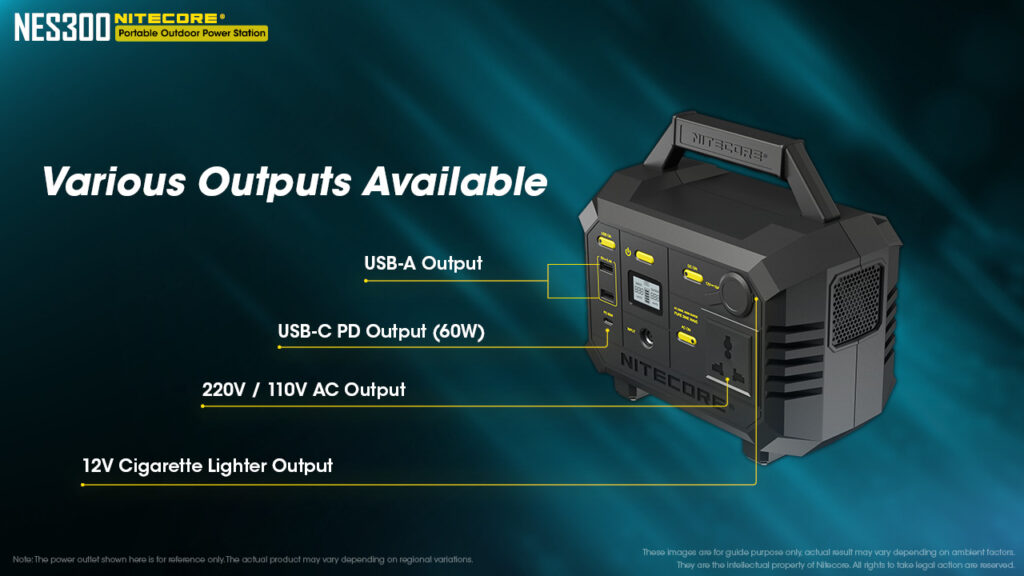

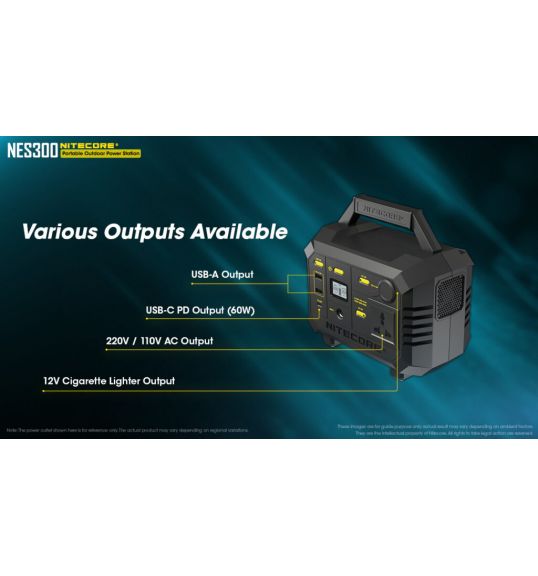

06. It has a wide variety of power output ports
– Two USB-A ports
– One USB-C PD (60W) port
– 110V/220V AC outlet
– 12V car cigarette lighter socket

07. Multiple charging modes available
– From NITECORE 100W solar panel (FSP100 or FSP100W) with 3.5 hours charging at minimum. Suggested solution.
– From the 12V car cigarette lighter with the supplied cable. Minimum charging time 6.5 hours
– From the 220V mains with the provided adapter. Minimum charging time 6.5 hours

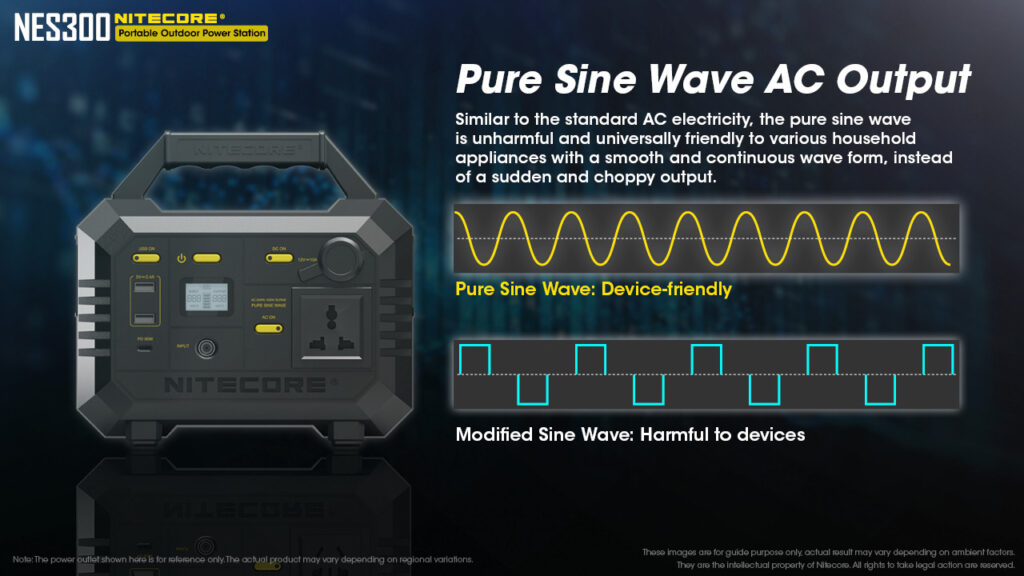

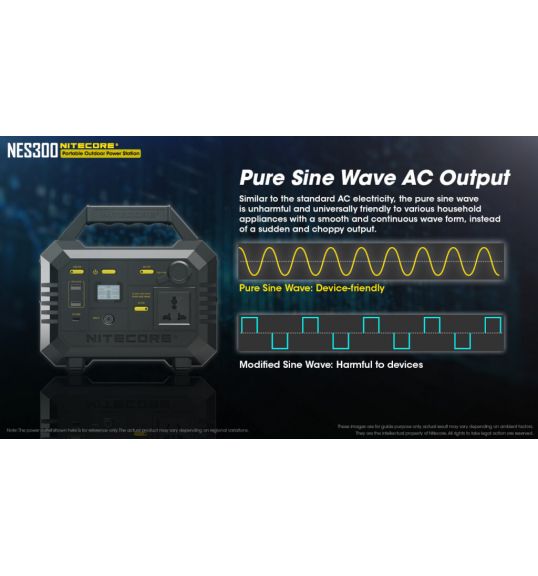

08. Pure alternating current ( AC ) sine wave output.
Similar to standard AC electricity, the pure sine wave is friendly to various electrical devices
by having a smooth and continuous form as opposed to a sharp and erratic output.

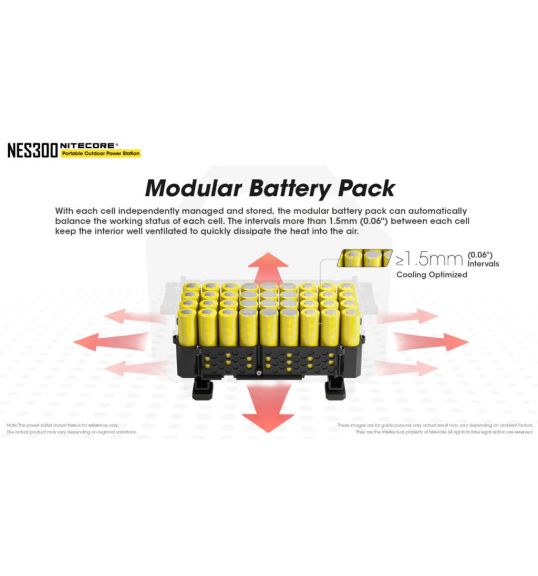

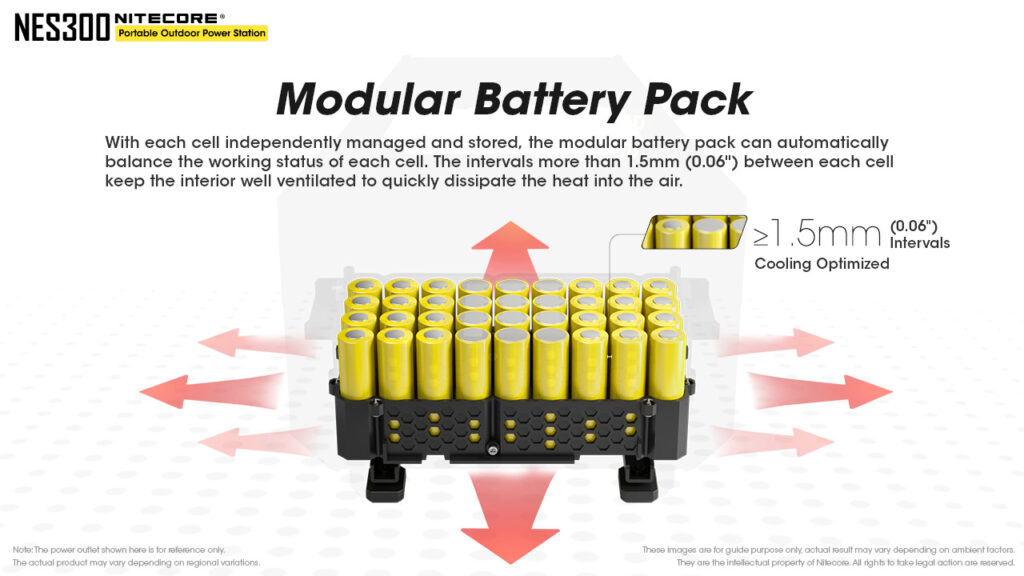

09. Modular Battery Pack
With each battery separately stored and separately managed, the modular battery pack can automatically balance the
operating status of each battery cell. The margins between the batteries are greater than 1.5mm so that the internal space is properly ventilated and
the temperature is quickly expelled.

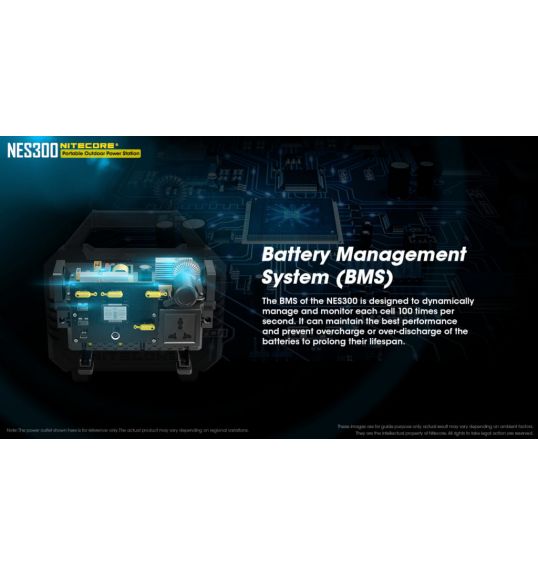

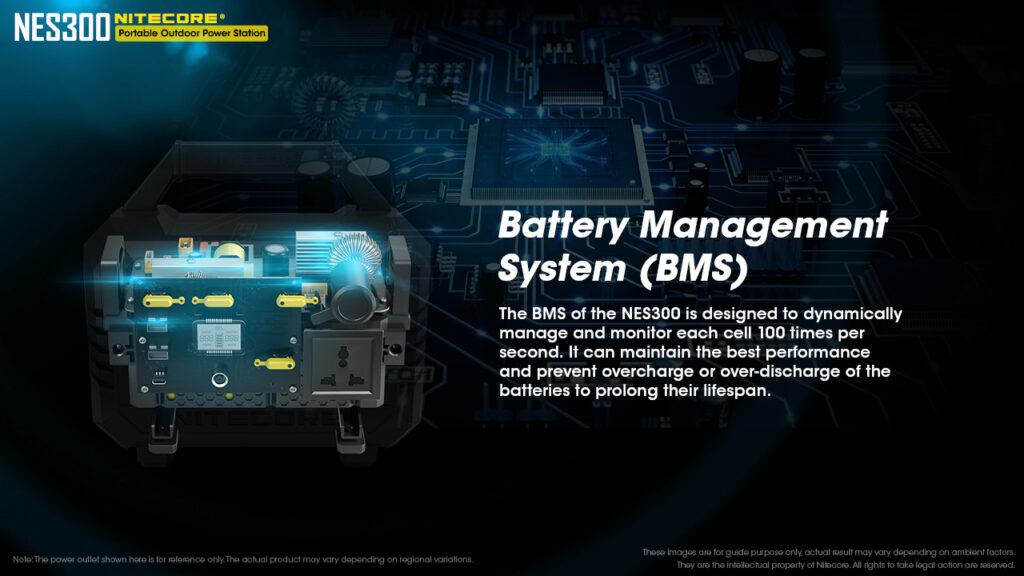

10. Battery Management System (BMS)
The NES300's BMS is designed to dynamically manage and control each battery cell 100 times per second. It can maintain the
best performance and prevent over-charging or over-discharging of batteries so as to increase their lifespan.

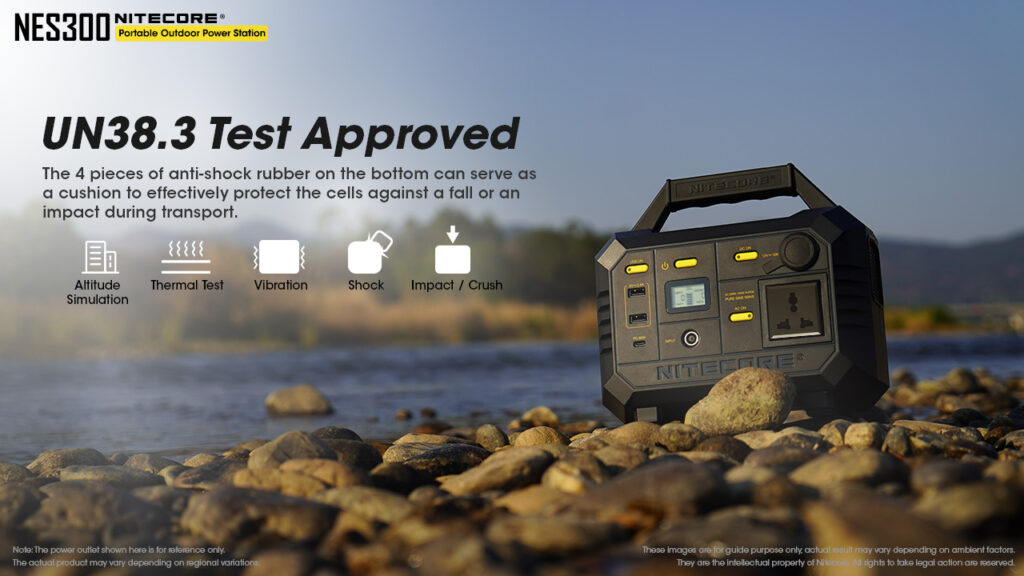

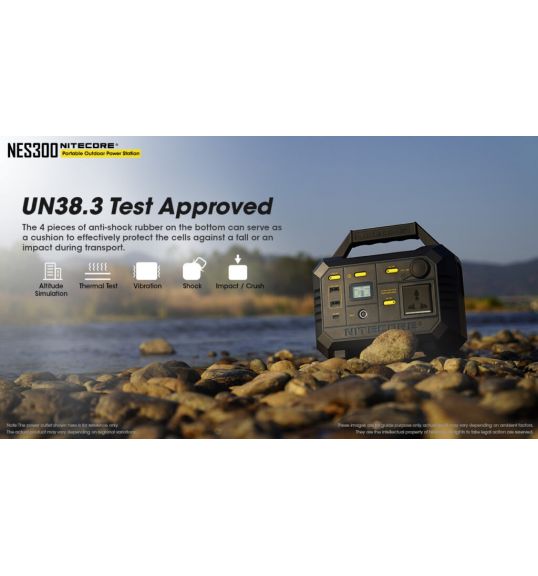

11. Approved after inspection according to the UN38.3 standard
The 4 pieces of anti-vibration rubber on the bottom act as pads to effectively protect the cells
in a drop or shock during transport.

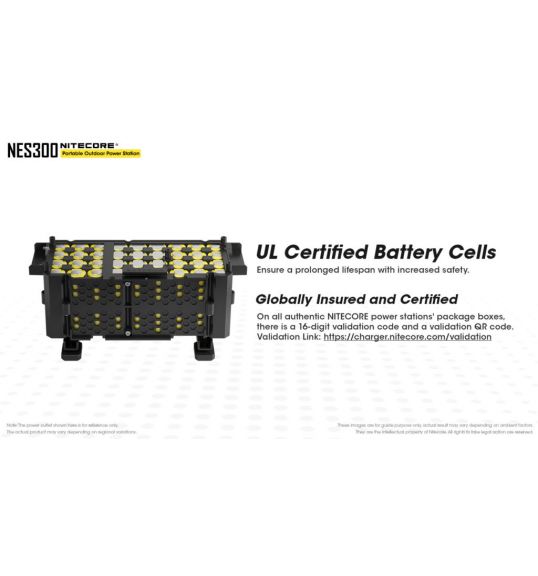

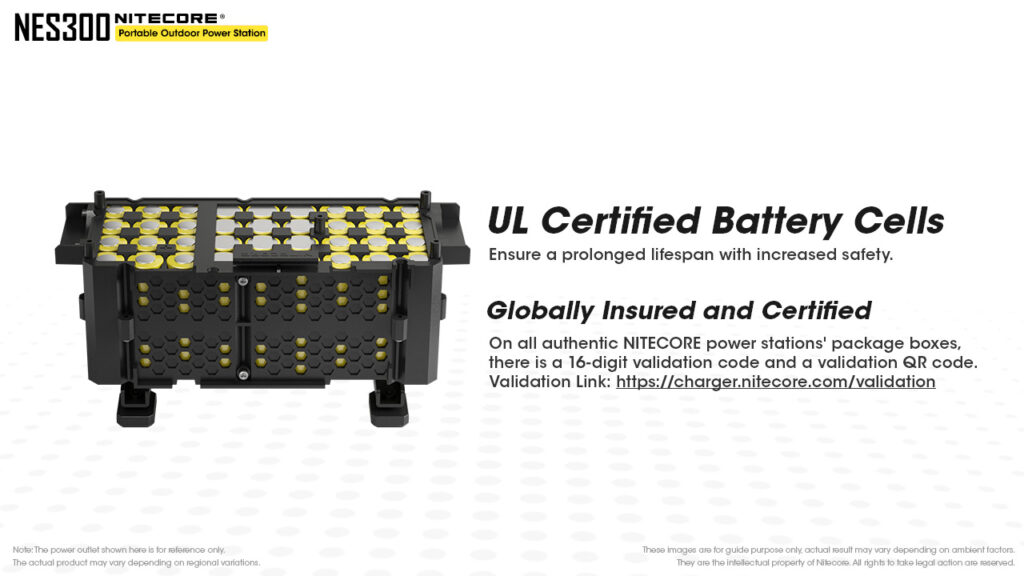

12. UL certified battery cells
Ensure long life with increased safety.
Globally insured and certified
On the outer packaging of all original NITECORE power stations there is a 16-digit certification code and QR code.
The validation link is: https://charger.nitecore.com/validation

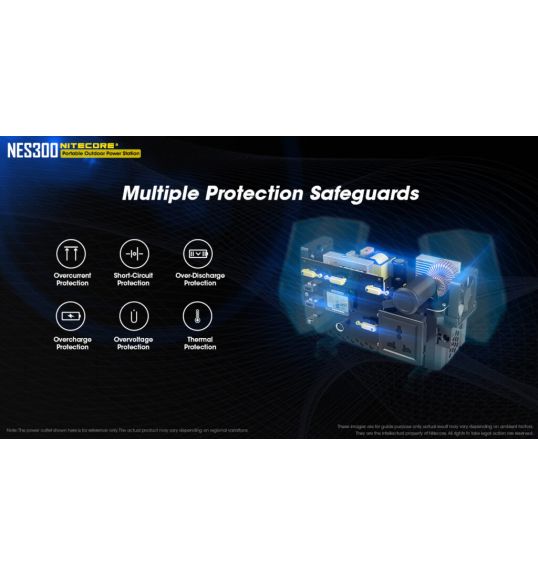

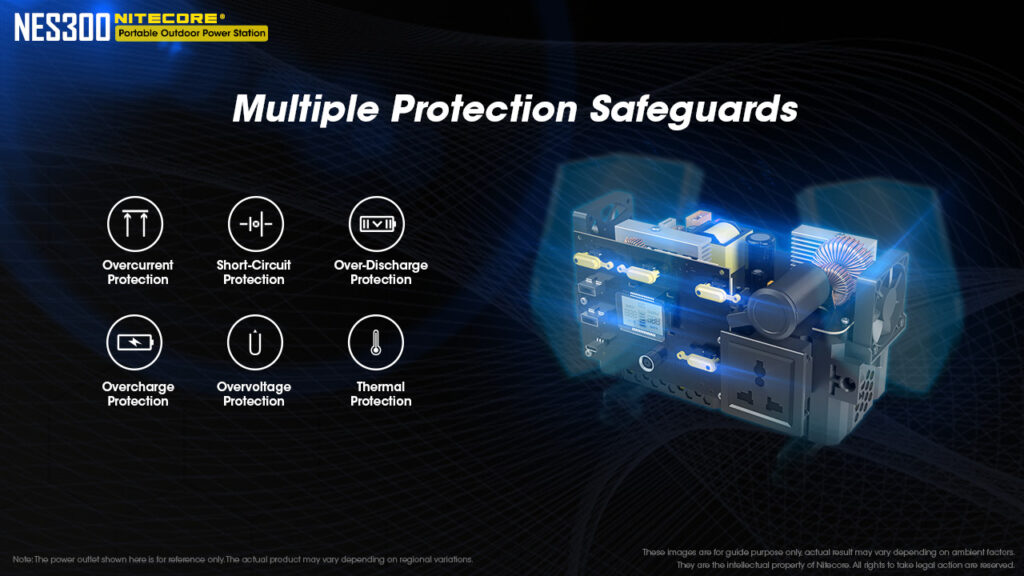

13. Multiple insurance layers of protection.
– Over current
protection – Short circuit
protection – Over discharge
protection – Over voltage
protection – Over charge
protection – Thermal protection

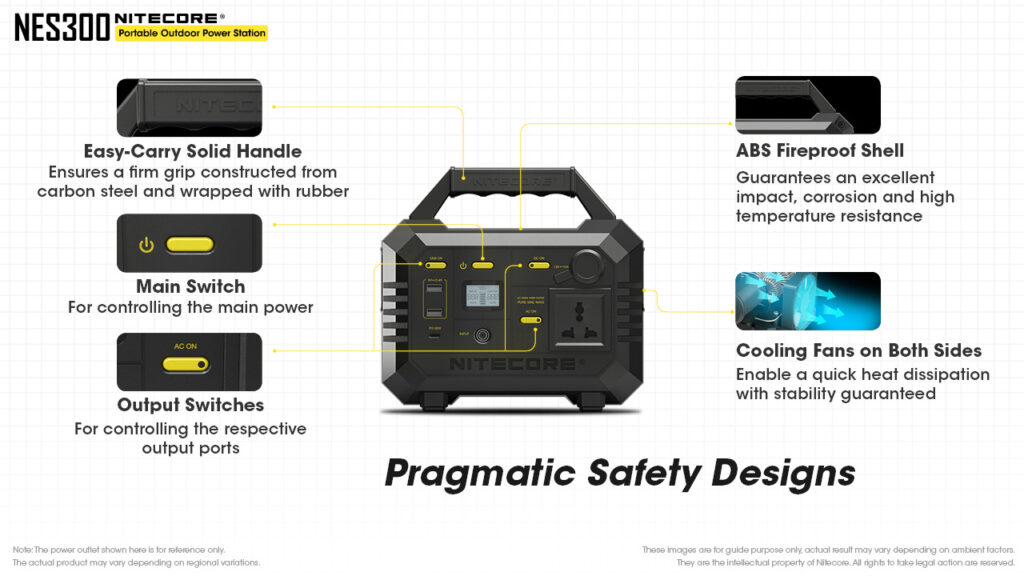

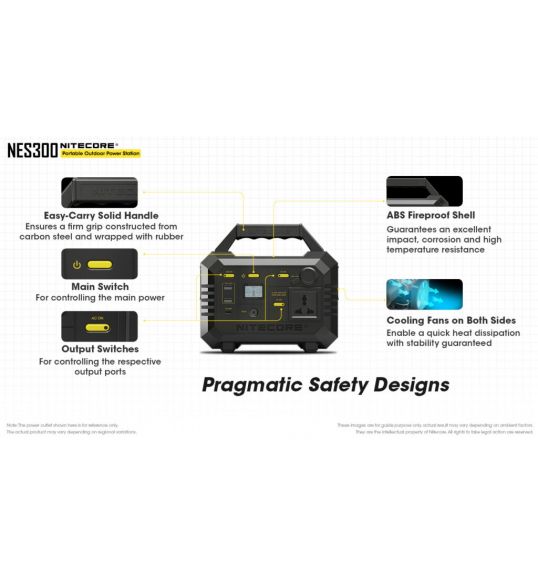

14. Real safety design
– Stable handle for easy carrying made of steel covered with rubber
– Central switch that controls the main current
– Output switches that control the corresponding output ports
– Fire resistant shell made of ABS. It ensures excellent impact resistance, corrosion resistance and high temperature resistance.
– Cooling fans on both sides that allow fast heat dissipation with guaranteed stability.

15. – Power your road trip
– While taking photos and videos
– Use it as a power backup
– Create a smart office on the go
– Connect lighting devices
– Charge electronic devices.

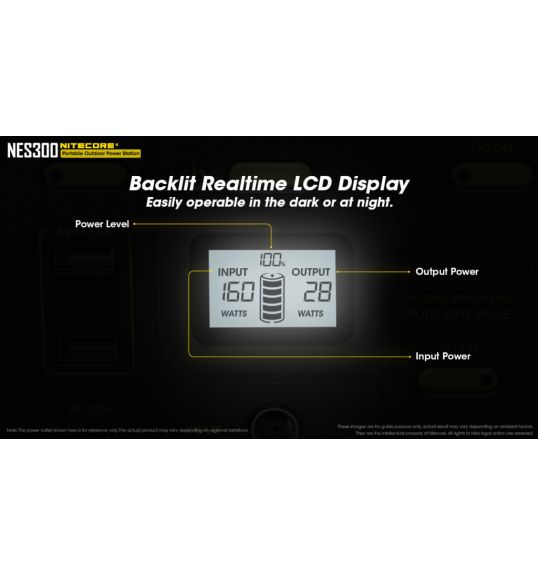

16. Liquid crystal display (LCD) with backlight, shows data in real time.
For easy use at night or in dark environments.
– Output Power
– Energy Level
– Time Remaining to Use / Charging Time
– Input Power

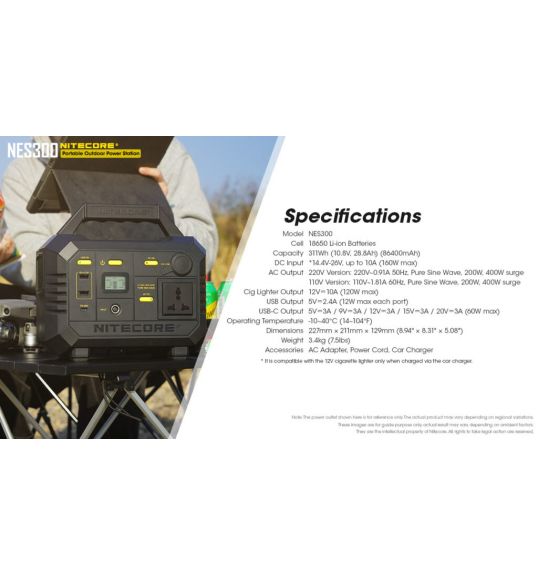

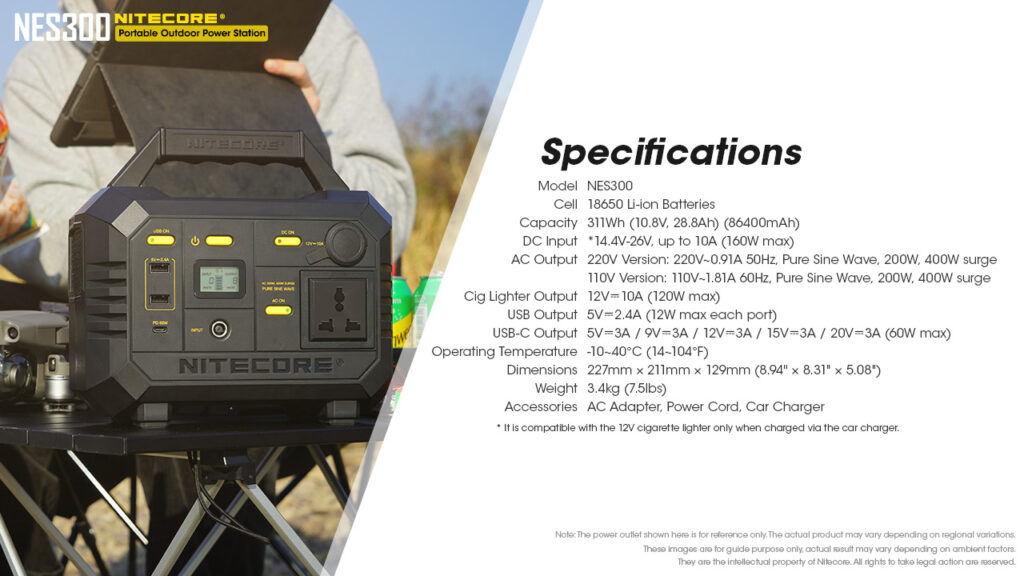

17. Technical data

18. The Power Stations can be manufactured with various types of socket for the supply of alternating current 110V / 220V
In Greece it is imported with the “Universal” socket

19. Product packaging
– NITECORE NES300 device
– Adapter for charging from a 220V network
– Adapter for charging from the car
– Instructions for use
