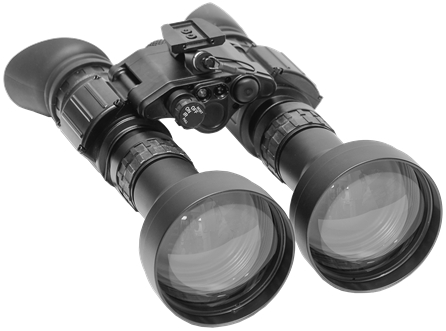

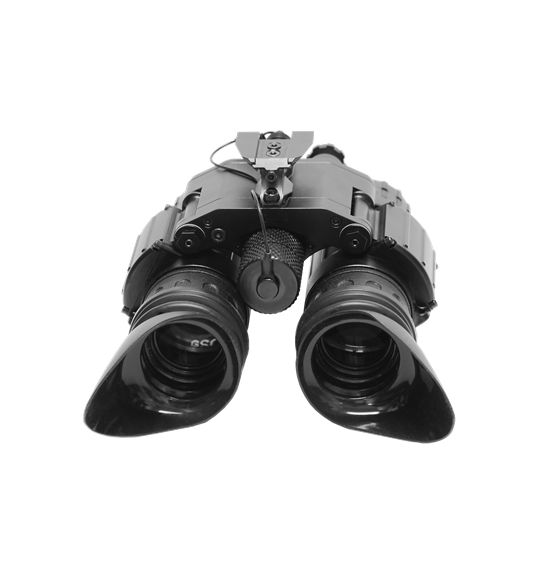

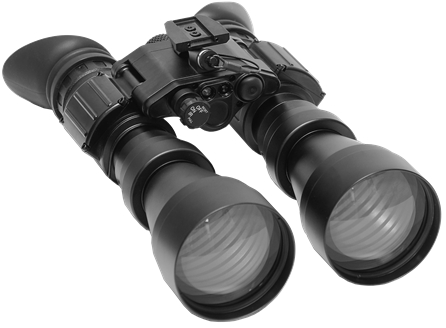

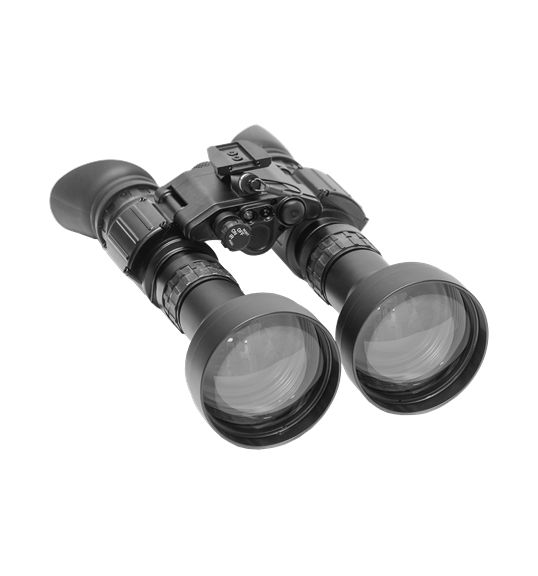

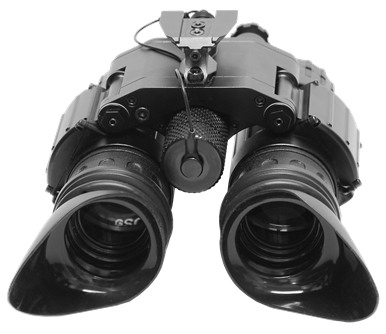

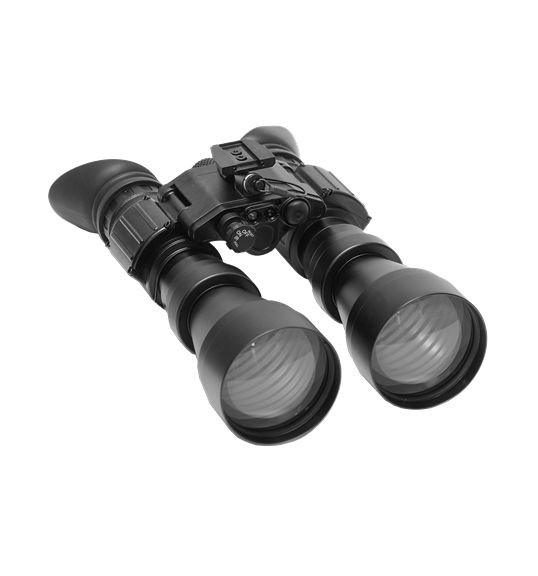

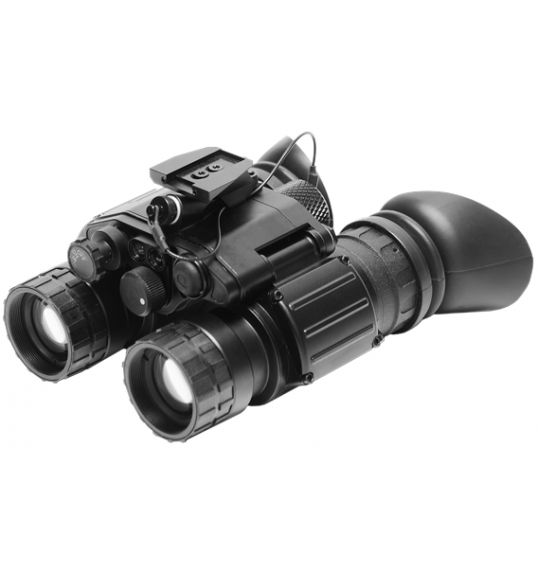

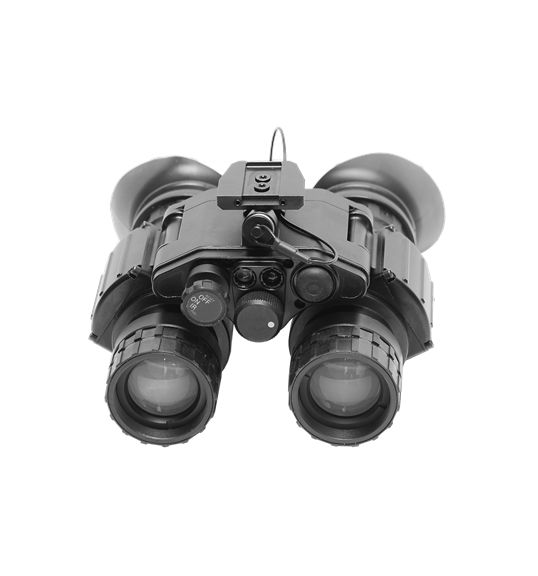

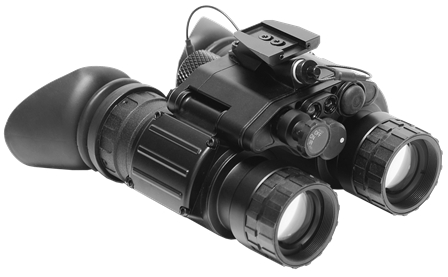

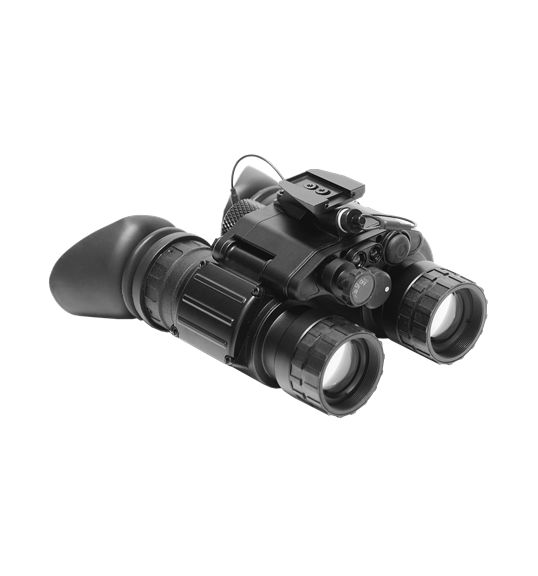

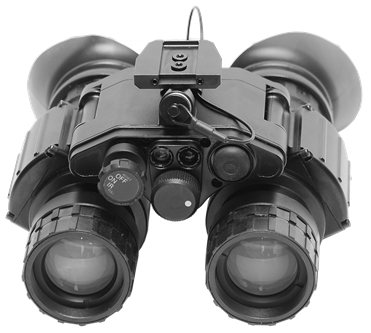

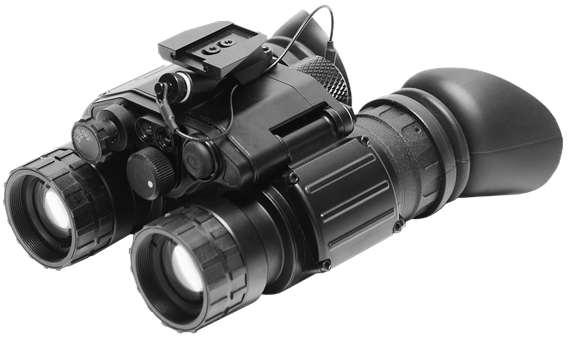

PVS-31C-MOD Dual-Tube Night Vision Goggles PVS-31C-MOD

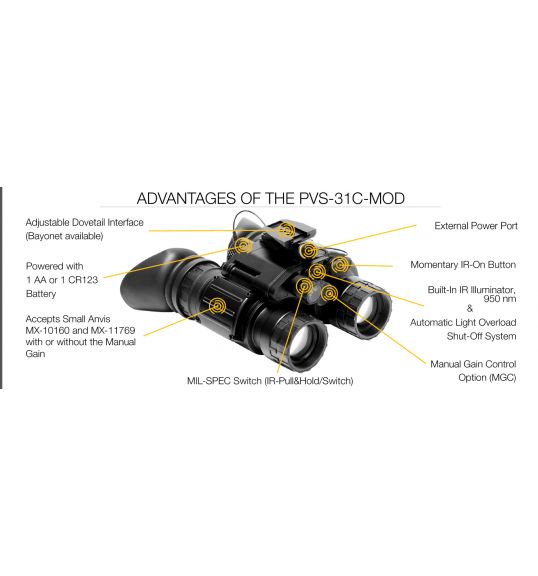

PVS-31C-MOD is a versatile and easy-to-operate night vision dual-tube binocular-goggle unit with superior depth perception. It is mostly used for conducting all kinds tactical operations in both rural and urban environments. The PVS-31C-MOD combines ergonomic design with improved functionality and accommodates features such as a dedicated Instant-On-IR button: this enables to quickly and momentarily engage IR illuminator without having to operate the switch to communicate between crew members using Morse code. The connector located at the front of PVS-31C-MOD is used to supply power to the unit from almost any power source: external battery pack, USB power bank, 12V car socket and so on. The device can also be powered by AA or CR123 battery that can be installed regardless of polarity - it is just one less thing to worry about in the dark environment.





1X

-6 .. +4

25cm .. Infinity



Optical Magnification

Diopter Adjustment Range

Focusing Range

Interpupillary Adjustment Range

50mm .. 90mm

Built-In IR Illuminator

Yes

Momentary IR-On Button

Yes

Power Source

1pc AA or 1pc CR123

Battery Life

Up to 40 hours



4VDC .. 15VDC

7 Years, Limited

-40°C .. +50°C

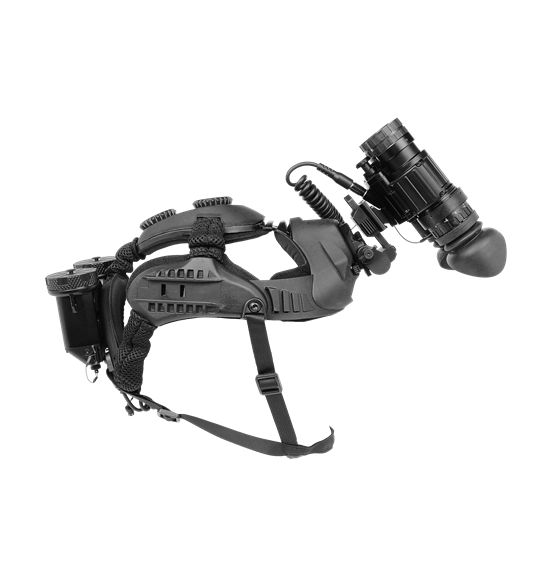

External Power Supply

Manufacturer's Warranty

Operating Temperature

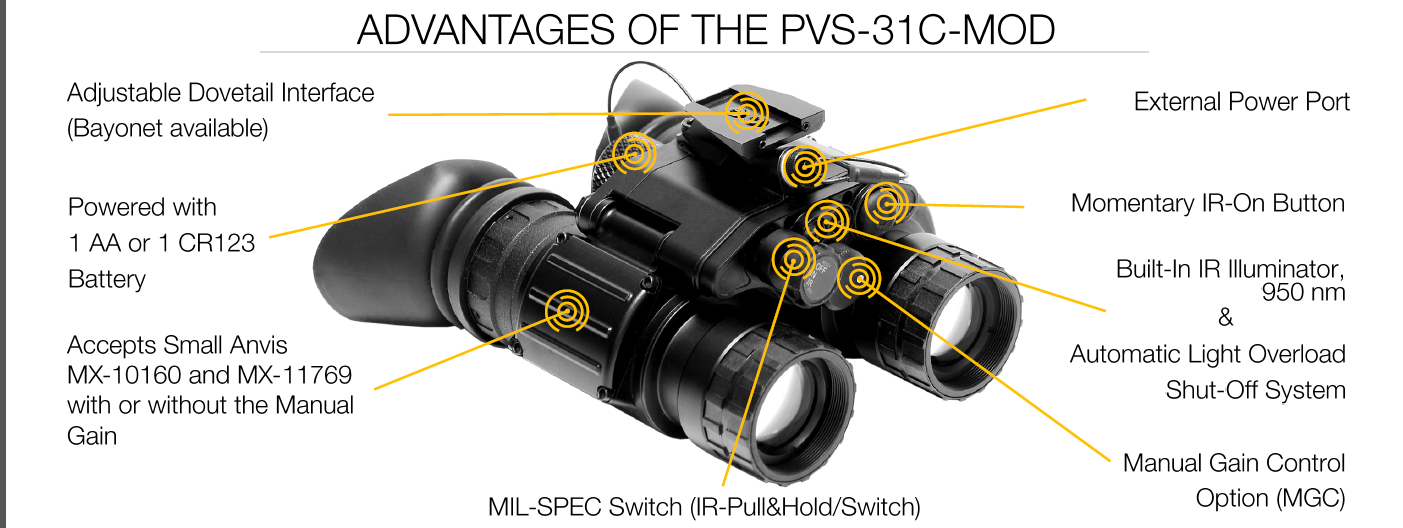

KEY FEATURES

¨ Universal Night Operations Tool
¨ Unique Safety Features
¨ Extended Range Observation
¨ High Situational Awareness
¨ Accepts External Power Sources
¨ Preferred choice of NATO forces

MAIN APPLICATIONS

¨ Defence
¨ Security
¨ Surveillance
¨ Border Patrol
¨ Navigation
¨ Reconnaissance


TECHNICAL DATA
Optical Magnification 1X
Objective Lens Focal Length 27mm
Focusing Range 0.25m .. Infinity
Diopter Adjustment Range -6 .. +4
Interpupillary Adjustment 50mm .. 90mm
Built-In IR Illuminator Yes
Momentary IR-On Button Yes
IR-On Indicator Yes
Manual Gain Control (MGC) Optional *
MIL-SPEC Switch Yes
Bright Light Protection Yes
Automatic Light Overload Shut-Off System Yes
Low Battery Indicator Yes
Stow Safety Feature Yes
Flip-Up-Off Feature Yes
Selective Channel Engagement Yes
Power Source 1pc AA or 1pc CR123
Any Polarity Battery Insertion Yes
Battery Life 40 Hours
External Power Supply 4VDC .. 15VDC
Dimensions 112x105x70mm
Weight 650 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Made In Canada ITAR-Free

Batteries not included

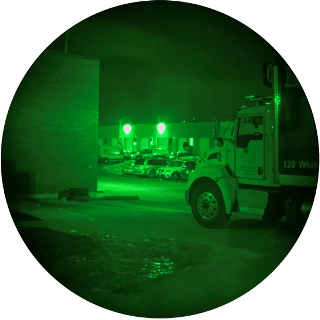

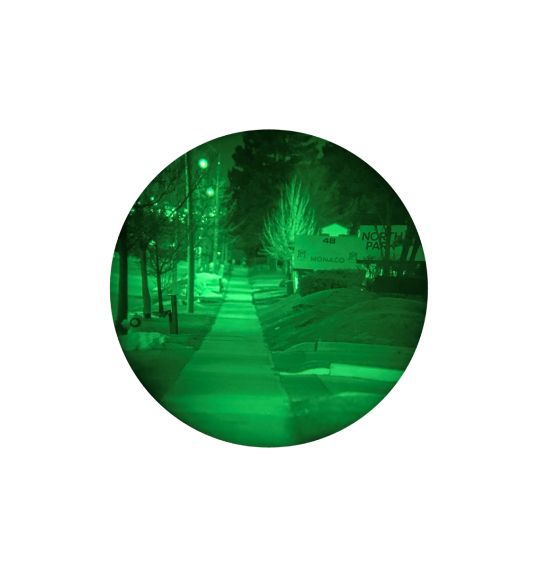

IMAGE INTENSIFIER TUBES: GEN 2+, GEN 3, ‡ ECHO, ‡ 4G

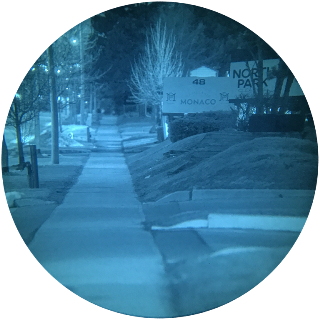

Autogating and White Phosphor options are available with selected tubes. Contact us for more details. ‡ ECHO, and 4G are the registered trademarks of Photonis Technologies S.A.S.


STANDARD EQUIPMENT: WHAT’S IN THE BOX

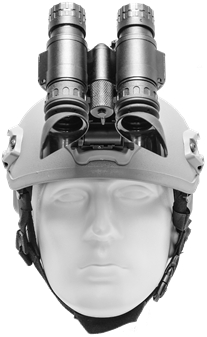

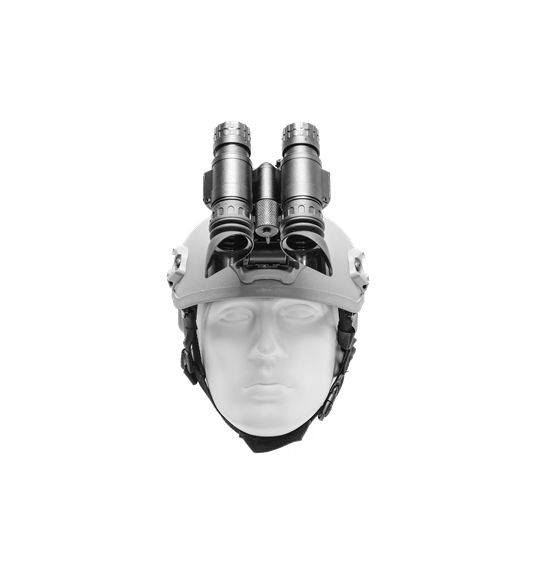

1 Dual-Tube Night Vision Goggles with Bayonet or Dovetail Bracket Installed
2 Rubber Eyecups (2 Installed on the device) + 2 Spare with Retaining Rings
3 Demist Shield (2pcs)
4 Sacrificial Window (2pcs)
5 Stow Safety Feature (Integrated)
6 AA Battery Extension Adapter (Installed on the device)
7 Rubber Daytime Filter with Training Hole (Installed on the device)
8 Adjustment Kit: Allen Key + Mini-Wrench
9 USB Power Cable
10 Neck Cord
11 Soft Carrying Pouch
12 User Manual
13 Waterproof Hard Case (Optional for Gen 2+ Models)
14 7-Year Warranty with Activation Form
15 Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)
