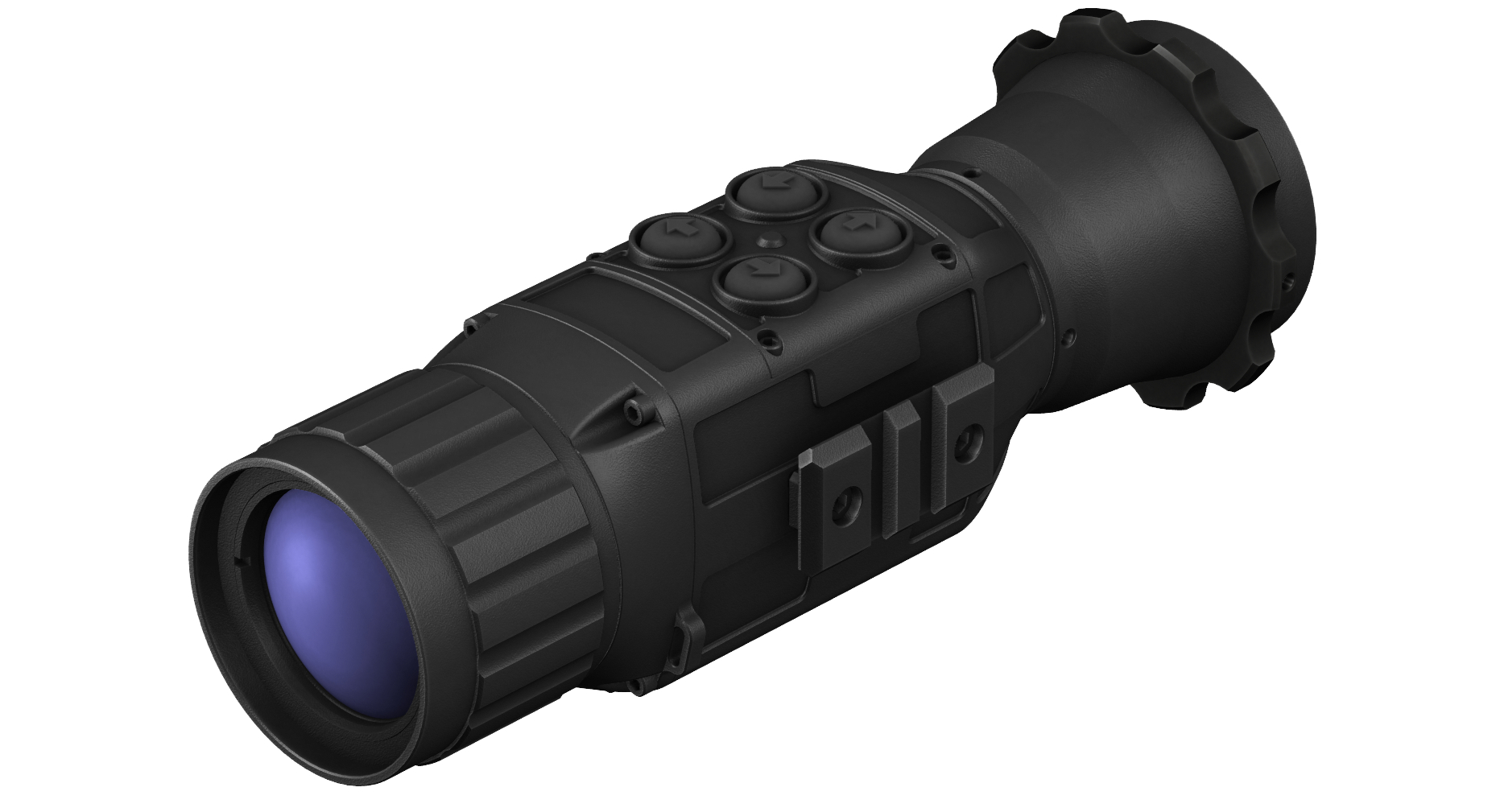

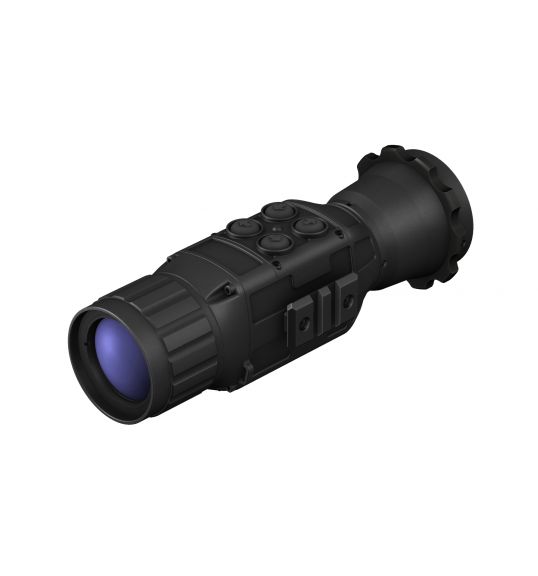

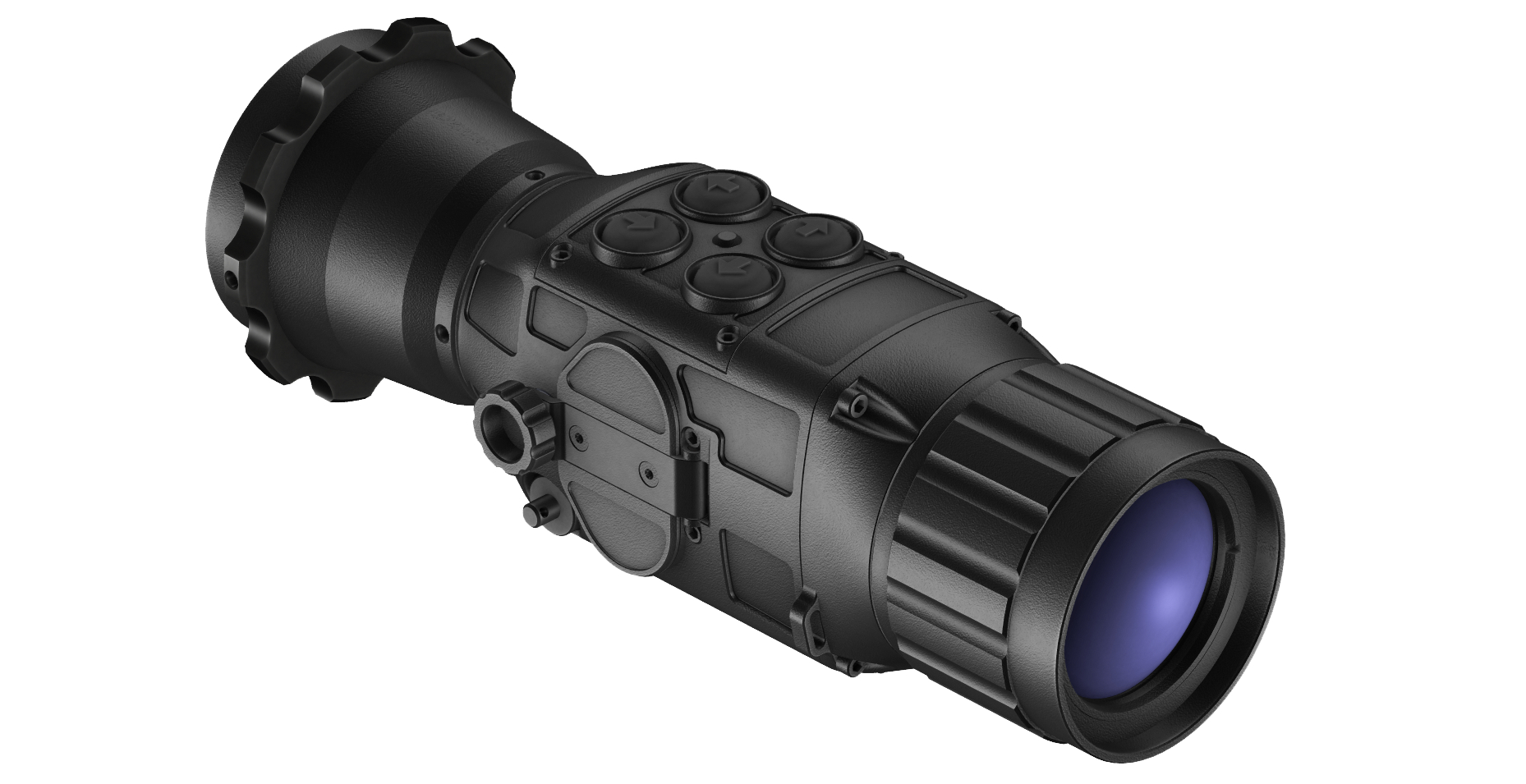

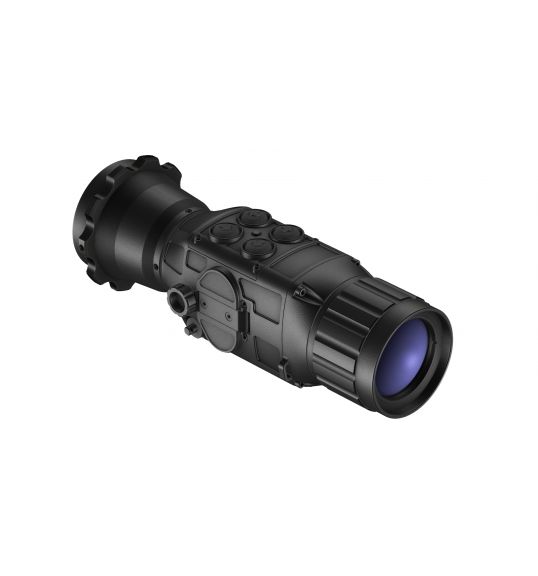

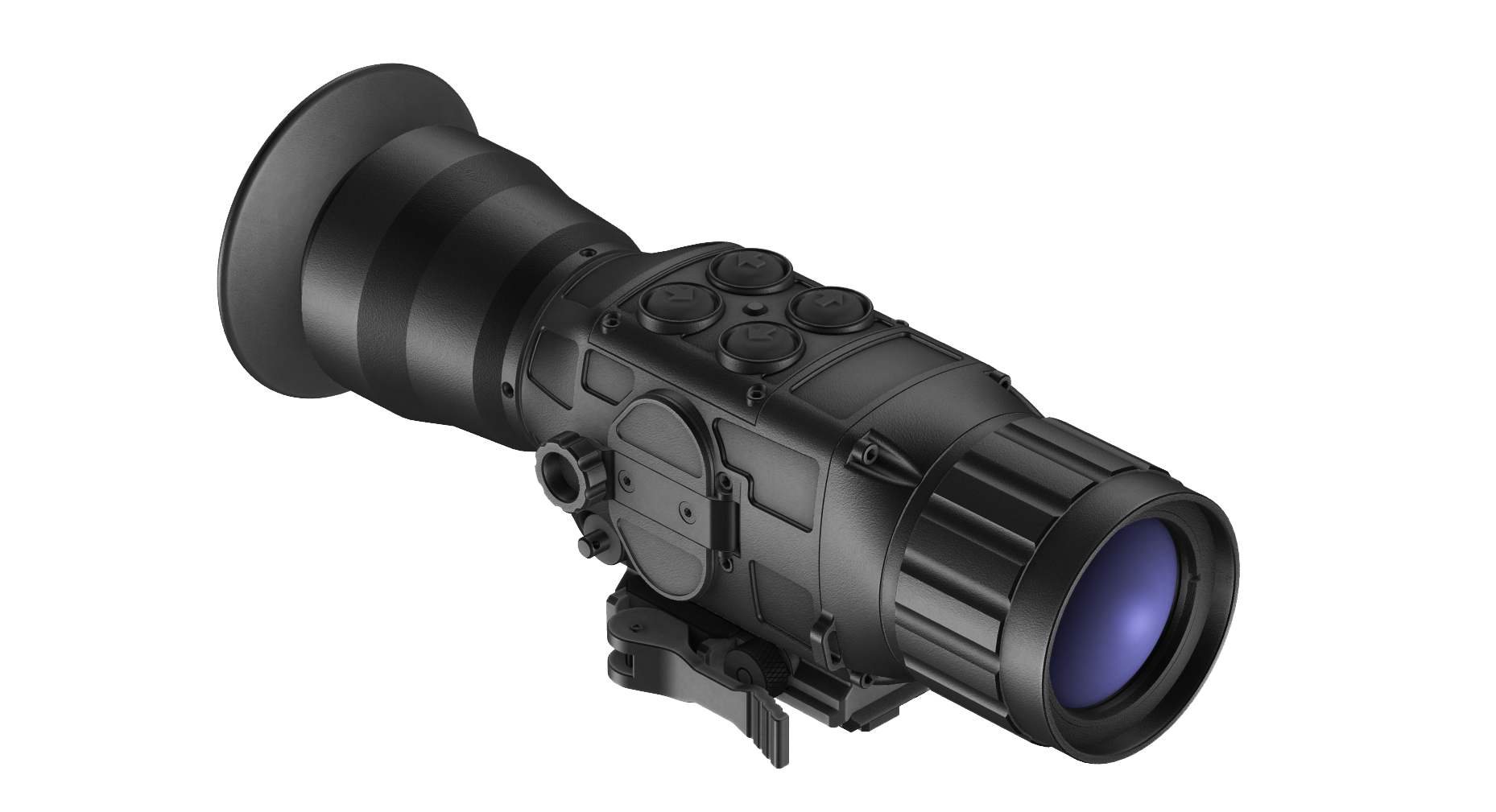

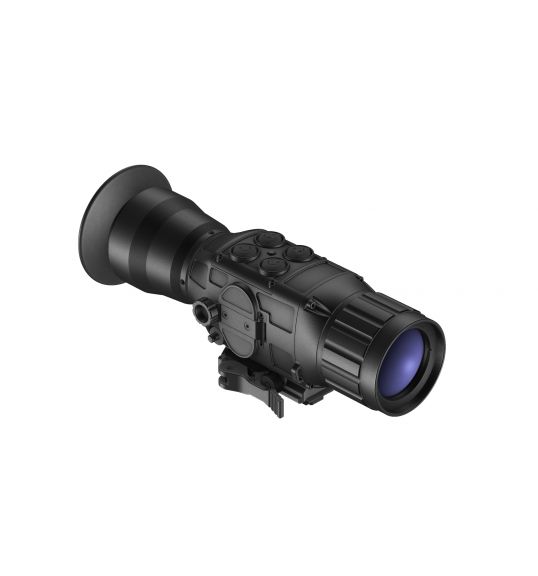

Precision Thermal Clip-On Scope TI-GEAR-C345

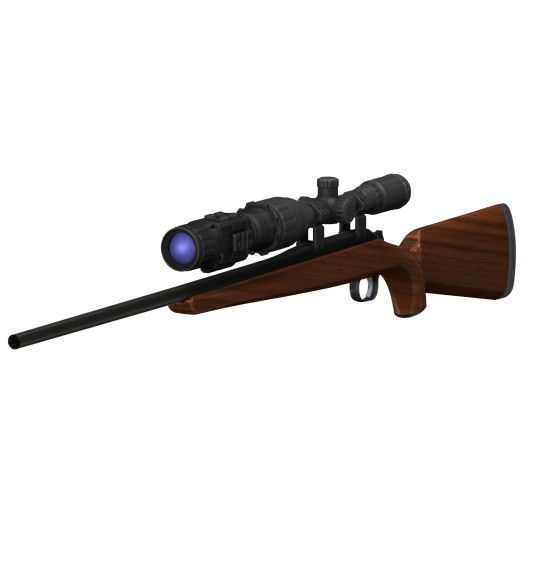

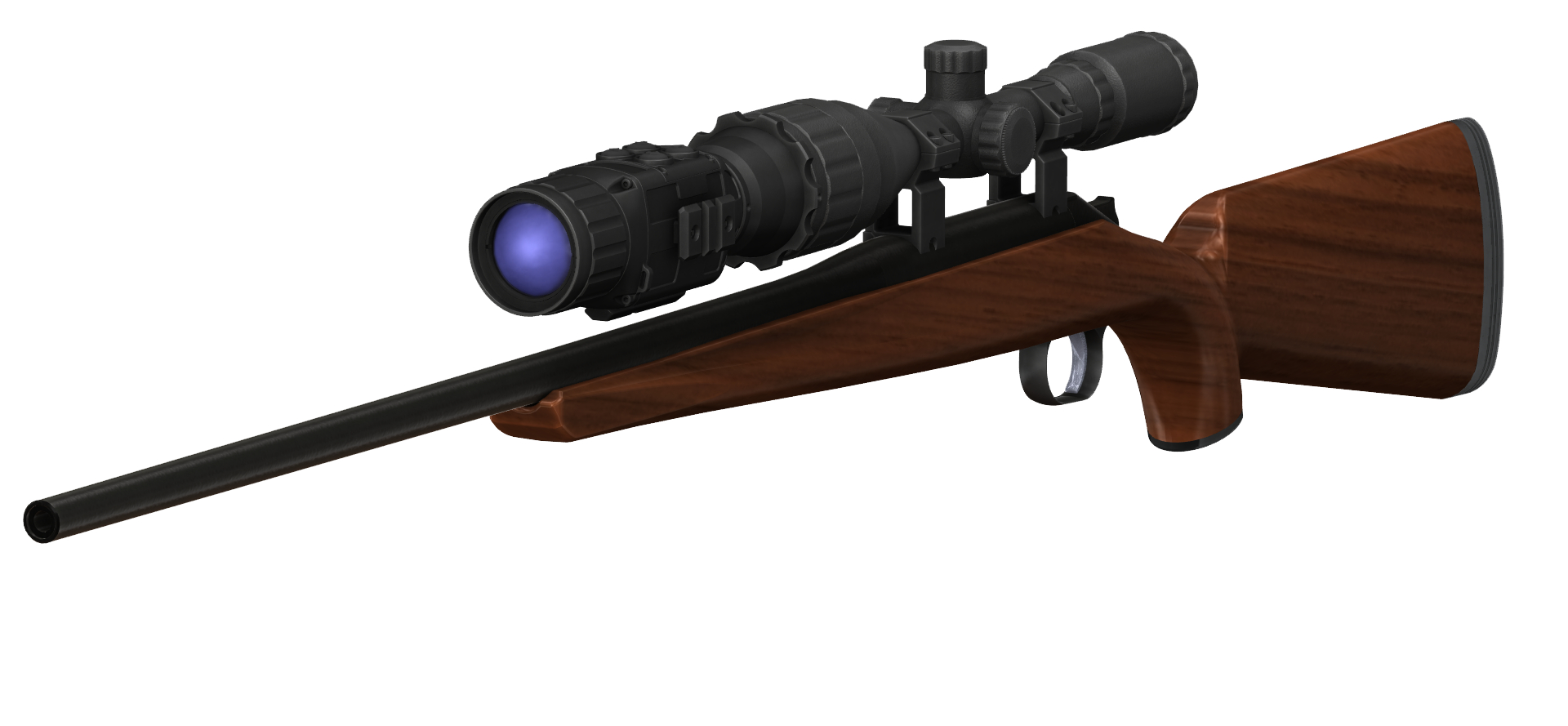

The TI-GEAR-C345 is the professional-grade thermal clip-on sight for aiming and engagement designed to work seamlessly with a wide variety of firearms and daytime scopes. The TI-GEAR-C345 is a plug-and-play unit, deployed in mere seconds with no zeroing needed. It is also a great tool for reconnaissance and tactical surveillance.

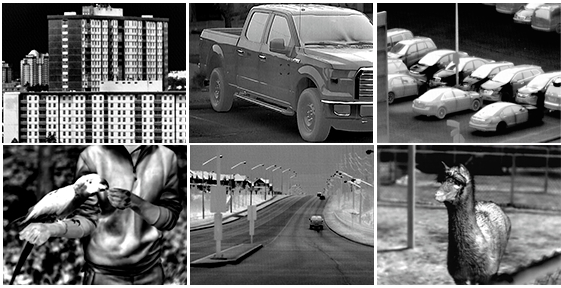

The latest generation silent and Auto-NUC sensor is at the base of the TI-GEAR-C345. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.
The TI-GEAR-C345 is fully dust- and waterproof, meets and exceeds modern standards. The TI-GEAR-C345 is designed for both professional users and firearms enthusiasts. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.


TECHNICAL DATA:
Optical Magnification 1X
Objective Lens System 45mm
Field of View 8.3°x6.2°
Focusing Range 1.5m .. Infinity
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch 384x288, 17μm
FPA Sensitivity (NETD) <50mK
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X
Internal Display Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600

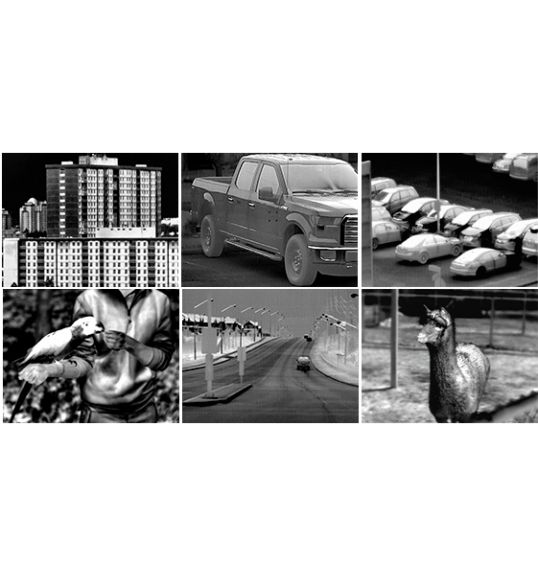

Imaging Modes Monochrome (White-Hot / Black-Hot) and 8 Colour Palettes
Shot-Initiated FOV Feature (SIF) Built-In Adjustable Shock Sensor
Digital Passive Stadiametric Rangefinder (SRF) Yes
Digital Detail Enhancement Feature (DDE) Yes
Wide Dynamic Range Feature (WDR) Yes
Stow Safety Feature (SSF) Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope
Integrated Compass Optional
Pitch / Roll / Azimuth Indications Optional
Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp Optional: Comes with removable 32GB microSD card
Electronic Reticles Can be Enabled for Standalone Sight Configuration: 8+8 Patterns, Easy Zeroing / Calibration
Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m) 1500m / 2030m

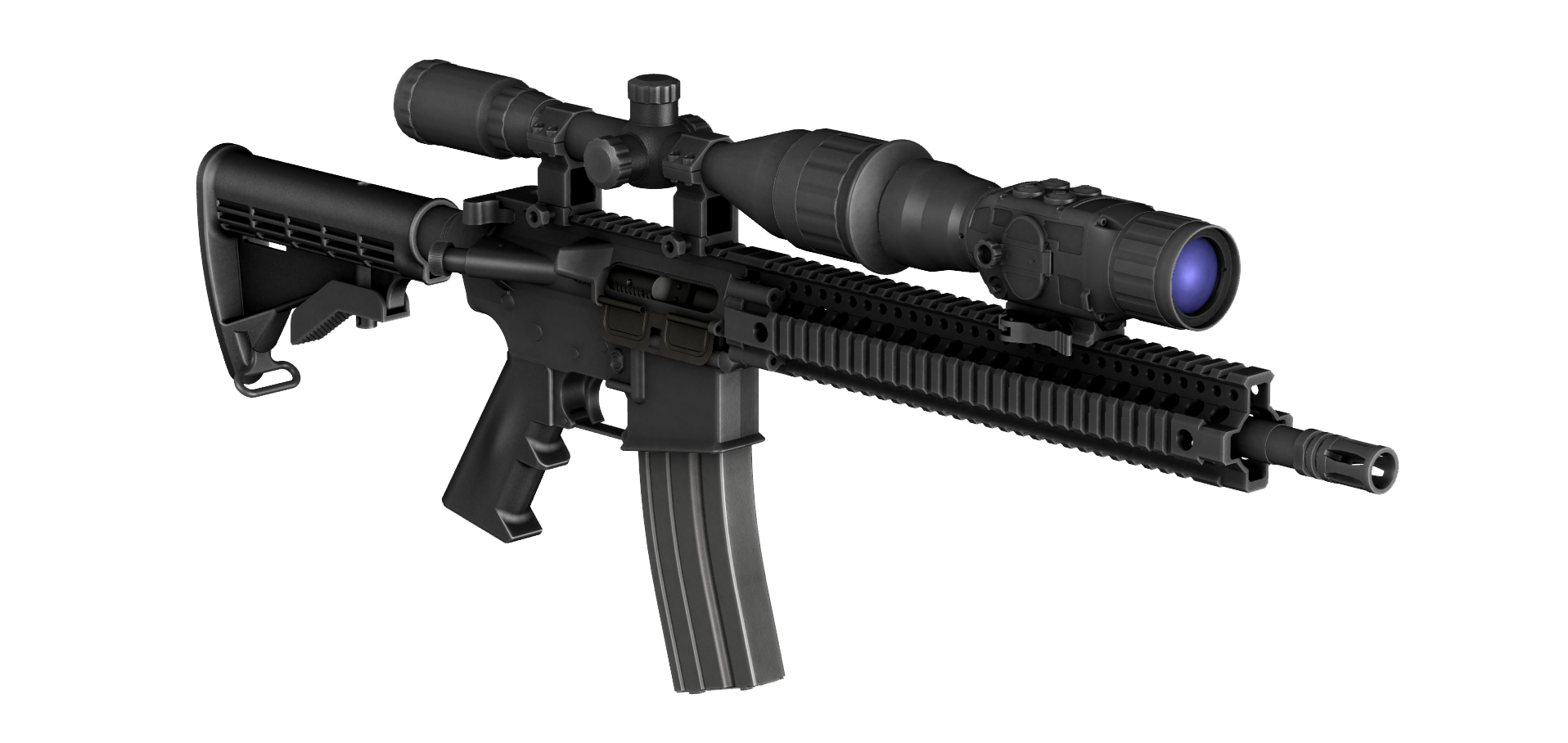

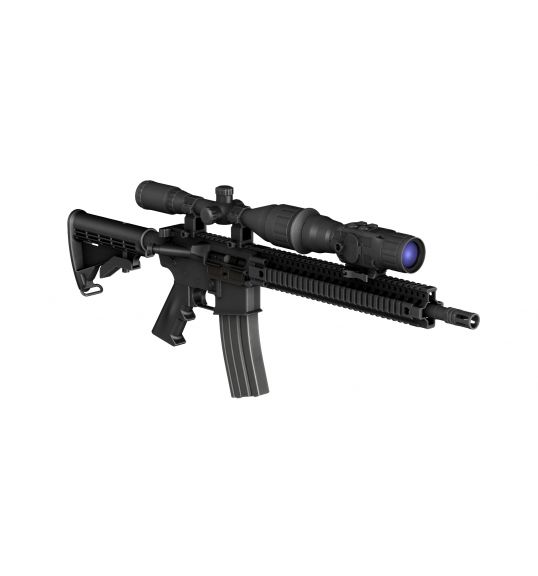

Mounting to Dayscope On-Rail, On-Scope Direct, On-Scope Via Clamp/Adapter
Optimal Dayscope Magnification Range 3X .. 12X
Hand-Held / Tripod-Mounted Capability Yes: Hand-Held and Tripod-Mountable
Conversion to Standalone (Direct View) Sight Yes
User Profiles (Configurable) Yes: 8
Automatic/Manual Pixel Masking Yes
Reset to Factory Defaults Yes
External Video Feed Protection Yes
Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity
Accepted Batteries 2 (two) CR123 of Any Type: Lithium / Rechargeable
Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Battery Life on 2x CR123 Up to 7 Hours
Environmental Protection Min. IP67, Nitrogen-Purged Housing
Dimensions 183 x 60 x 60 mm
Weight 545 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Made In Canada ITAR-Free

Batteries not included


STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 Thermal Imaging Clip-On Sight
2 Clip-On Eyepiece with Rubber Shroud (Attached)
3 Front Lens Protective Cover (Attached)
4 Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments)
5 USB Power Cable
6 Video-Out Cable
7 Soft Carrying Pouch
8 User Manual
9 Quick Reference Card
10 7-Year Warranty with Activation Form
11 Waterproof Hard Carrying Case
12 Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)

OPTIONAL EQUIPMENT
A Universal Remote Control Unit TRC-120 (Comes with connection cable)
B Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable)
C Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter)
D External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card)
E Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable)
F Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading
G Heavy-Duty Quick Release Rifle Mount MAK-QR-BLASER (Blaser, Adapter included)
H Heavy-Duty Quick Release Rifle Mount MAK-QR-PICATINNY (PICATINNY, Adapter included)
I Heavy-Duty Rifle Mount MAK-PICATINNY (PICATINNY, Adapter included, Allen Key Included)
J Adapter for MAK Mount: Regular Length (ADAPTER-REG) or Extended Length (ADAPTER-EXT)
K Direct View Eyepiece GSCI-LR-EYEPIECE
L Day Scope Adapter Clamp for COA for direct mounting onto daytime optics, CO-DSA (various sizes available)
M Long Eyerelief Rubber Eyecup GSCI-EYECUP-LR
