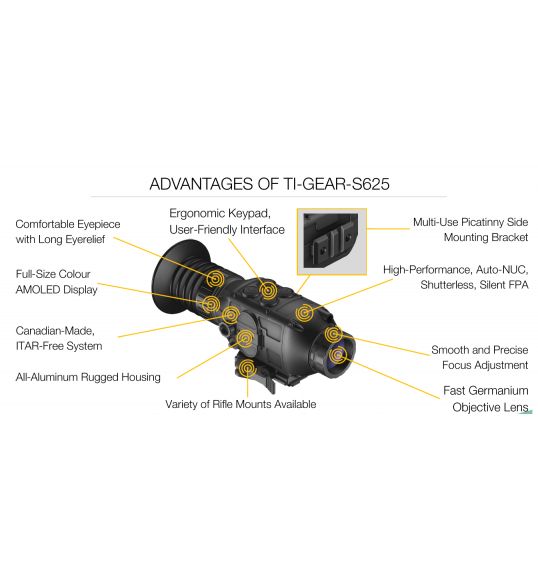

Precision Thermal Rifle Scope TI-GEAR-S625

The TI-GEAR-S625 is the professional-grade thermal weapon sight for aiming and engagement on a wide variety of firearms at short- to and medium-range distances. Ideal for both small, large-size caliber rifles, machine guns, whether single or repetitive shooting. It is also a great tool for reconnaissance and tactical surveillance.
The latest generation silent and Auto-NUC sensor is at the base of the TI-GEAR-S625. GSCI proprietary hardware and software solutions are built around the sensor and offer exceptional image quality along with unique tools for added tactical advantage and user safety.
The TI-GEAR-S625 is fully dust- and waterproof, meets and exceeds modern standards. The TI-GEAR-S625 is designed for both professional users and also firearms enthusiasts. It is a robust, reliable tool for long-term, intensive use in any environment, in any lighting or weather conditions.


Optical Magnification 1X
Objective Lens System 25mm
Field of View 24.5°x18.5°
Focusing Range 0.5m .. Infinity
Diopter Adjustment Range -6 .. +4
Eyerelief Min. 50mm
FPA Type Uncooled, a-Si, Shutterless, Silent, Auto-NUC (Uninterrupted Operation)
FPA Resolution and Pitch 640X480, 17μm
FPA Sensitivity (NETD) <50mK
FPA Refresh Rate 50Hz
Digital Zoom 1X, 2X, 4X, 8X
Internal Display Full Size: 0.6-Inch Diagonal, AMOLED, Colour, 800x600
Imaging Modes Monochrome (White-Hot / Black-Hot) and Multiple Colour Palettes
Shot-Initiated FOV Feature (SIF) Built-In Adjustable Shock Sensor
Digital Passive Stadiametric Rangefinder (SRF) Yes
Digital Detail Enhancement Feature (DDE) Yes
Wide Dynamic Range Feature (WDR) Yes
Stow Safety Feature (SSF) Yes
Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display) Optional: 3-Axis Sensors - Magnetometer, Accelerometer and Gyroscope
Integrated Compass Optional
Pitch / Roll / Azimuth Indications Optional
Real-Time Date-Time Stamp Yes: Simplified, Extended, DTG Formats
Digital Video Recorder with Real-Time Stamp Optional: Comes with removable 32GB microSD card
Electronic Reticles 8+8 Patterns, Easy Zeroing / Calibration
Detection Capability: Man (1.7x0.5m) / NATO Target (2.3x2.3m) 830m / 1130m
Hand-Held Capability Yes: Tripod-Mountable + Helmet-Mountable (Weapon mount has to be removed)
Conversion to Clip-On (In-Line) Sight Yes
User Profiles (Configurable) Yes: 8
Automatic/Manual Pixel Masking Yes
Reset to Factory Defaults Yes
External Video Feed Protection Yes
Automatic Power Down Control User-Configurable: 10 .. 60 minutes of inactivity
Accepted Batteries 2 (two) CR123 of Any Type: Lithium / Rechargeable
Universal Port Video-Out, Remote Control and External Power (4VDC .. 15VDC)
Battery Life on 2x CR123 Up to 7 Hours
Environmental Protection Fully Waterproof
Dimensions 140 x 60 x 60 mm
Weight 365 grams
Operating Temperature -40°C .. +50°C
Warranty 7 Years, Limited
Made In Canda ITAR-Free
Batteries not included



STANDARD EQUIPMENT: WHAT’S IN THE BOX
1 Thermal Imaging Sight
2 Long Eyerelief Rubber Eyecup (Attached)
3 Front Lens Protective Cover (Attached)
4 Adjustable Dual Quick Release Weapon Mount DQRM (Picatinny, with fine-tune knobs for tolerance adjustments)
5 Demist Shield
6 USB Power Cable
7 Video-Out Cable
8 Soft Carrying Pouch
9 User Manual
10 Quick Reference Card
11 7-Year Warranty with Activation Form
12 Waterproof Hard Carrying Case
13 Cleaning Kit (3-in-1 Multi-Pen + Cleaning Cloth)


OPTIONAL EQUIPMENT
A Advanced Helmet Mount Harness HMH-1
B Universal Remote Control Unit TRC-120 (Comes with connection cable)
C Universal Multi-Voltage Battery Pack MVP-240 (Comes with connection cable)
D Built-In Digital Video Recorder GS-DVR-INT (Comes with 32GB microSD card and SD adapter)
E External Digital Video Recorder GS-EDVR (Comes with set of cables and 32GB SD card)
F Portable Head-Mounted Display HMD-800-MOD (streams thermal video directly from the device, comes with connection cable)
G Integrated 9-Axis Absolute Orientation HUD (Heads-Up Display), 3-Axis Sensors for Compass Reading, Inclinometer/Pitch Reading, and Level/Roll Reading
H Dual Lever Adjustable Rifle Mount DLM (Picatinny, with fine-tune knobs for tolerance adjustments)
I Heavy-Duty Quick Release Rifle Mount MAK-QR-BLASER (Blaser, Adapter included)
J Heavy-Duty Quick Release Rifle Mount MAK-QR-PICATINNY (PICATINNY, Adapter included)
K Heavy-Duty Rifle Mount MAK-PICATINNY (PICATINNY, Adapter included, Allen Key Included)
L Adapter for MAK Mount: Regular Length (ADAPTER-REG) or Extended Length (ADAPTER-EXT)
M Clip-On Adapter COA
N Day Scope Adapter Clamp for COA for direct mounting onto daytime optics, CO-DSA (various sizes available)
